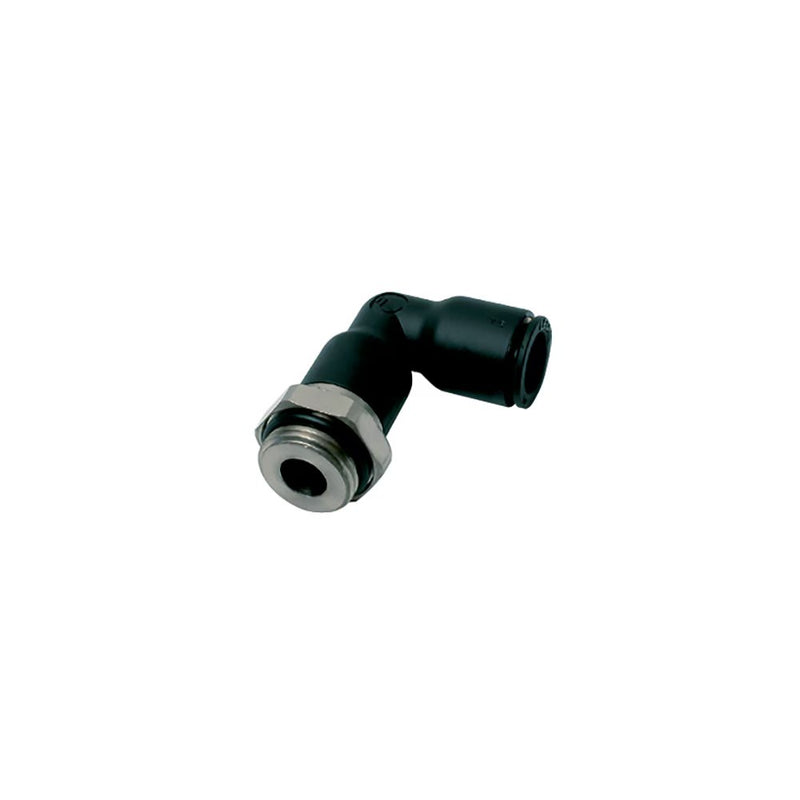

3169 16 17 by Parker | Legris Stud Fitting | 16 mm Push-to-Connect x 3/8" Male Swivel BSPP Thread | 27 mm Hex | 90° Elbow | Polymer

Save $10.03

$35.35

$35.35 - $35.35

$35.35

$25.32

$25.32 - $25.32

$25.32

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3169 Extended Stud Elbow, Male BSPP and Metric Thread

Specifications for Variant SKU: 3169 16 17 Parker
Brand:	LF 3000®
Series:	3169 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	G	H	L	Kg
3169 04 19	4 mm	M5x0.8	3.5 mm	8 mm	8.5 mm	23 mm	19 mm	.006 Kg
3169 04 10	4 mm	1/8"	5 mm	13 mm	8.5 mm	22.5 mm	19 mm	.008 Kg
3169 04 13	4 mm	1/4"	5.5 mm	16 mm	8.5 mm	22.5 mm	19 mm	.014 Kg
3169 06 19	6 mm	M5x0.8	3.5 mm	10 mm	10.5 mm	27.5 mm	23 mm	.008 Kg
3169 06 55	4 mm	M7x1	4.5 mm	10 mm	10.5 mm	26 mm	23 mm	.012 Kg
3169 06 10	6 mm	1/8"	5 mm	13 mm	10.5 mm	27 mm	23 mm	.011 Kg
3169 06 13	6 mm	1/4"	5.5 mm	16 mm	10.5 mm	27 mm	23 mm	.016 Kg
3169 08 10	8 mm	1/8"	5 mm	13 mm	13.5 mm	36 mm	29.5 mm	.018 Kg
3169 08 13	8 mm	1/4"	5.5 mm	16 mm	13.5 mm	33 mm	29.5 mm	.021 Kg
3169 08 17	8 mm	3/8"	5.5 mm	20 mm	13.5 mm	33 mm	29.5 mm	.028 Kg
3169 10 13	10 mm	1/4"	5.5 mm	16 mm	16 mm	40.5 mm	34.5 mm	.028 Kg
3169 10 17	10 mm	3/8"	5.5 mm	20 mm	16 mm	40.5 mm	34.5 mm	.036 Kg
3169 10 21	10 mm	1/2"	7 mm	24 mm	16 mm	40.5 mm	34.5 mm	.049 Kg
3169 12 13	12 mm	1/4"	5.5 mm	19 mm	19 mm	44.5 mm	40.5 mm	.044 Kg
3169 12 17	12 mm	3/8"	5.5 mm	20 mm	19 mm	42 mm	40.5 mm	.038 Kg
3169 12 21	12 mm	1/2"	7 mm	24 mm	19 mm	42 mm	40.5 mm	.043 Kg
3169 14 17	14 mm	3/8"	5.5 mm	22 mm	22 mm	51 mm	46.5 mm	.059 Kg
3169 14 21	14 mm	1/2"	7 mm	24 mm	22 mm	48.5 mm	46.5 mm	.063 Kg
3169 16 17	16 mm	3/8"	7.5 mm	27 mm	27 mm	82.5 mm	52 mm	.220 Kg
3169 16 21	16 mm	1/2"	9 mm	27 mm	27 mm	82.5 mm	52 mm	.206 Kg

The body swivels for positioning purposes.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
