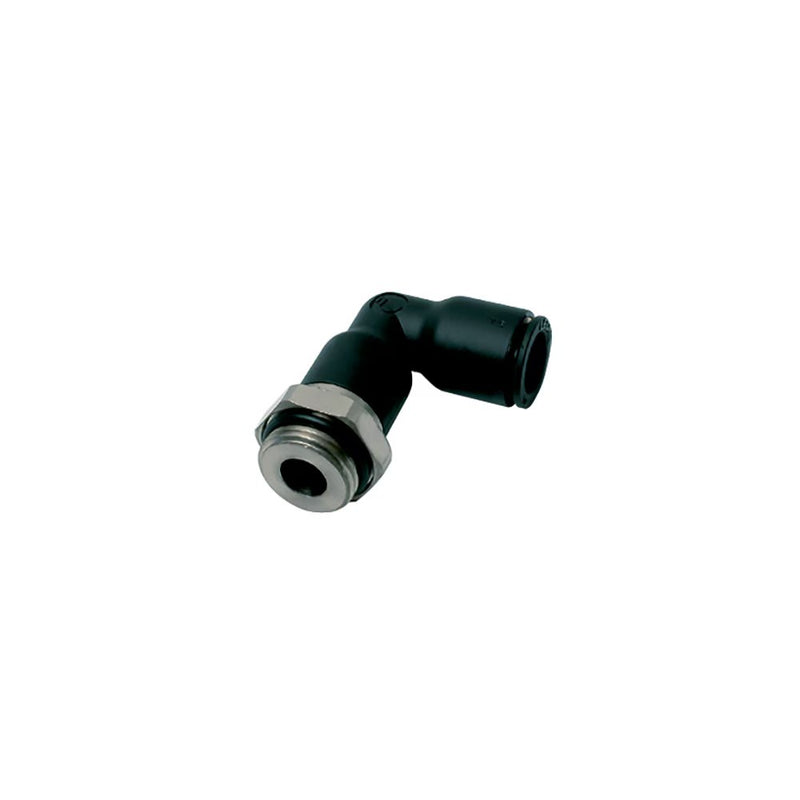

3169 56 55 by Parker | Legris Stud Fitting | 1/4" Push-to-Connect x M7x1 Male M7 Thread | 9 mm Hex | 1.35" Length | 90° Elbow | Nylon

3169 56 55 by Parker | Legris Stud Fitting | 1/4" Push-to-Connect x M7x1 Male M7 Thread | 9 mm Hex | 1.35" Length | 90° Elbow | Nylon | Pack of 10

Save $99.63 Save $99.63
$249.08
$249.08 - $249.08
$249.08
$149.45
$149.45 - $149.45
$149.45

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3169 - extended male elbow UNF or M7

Package Quantity: 10 Units

Specifications for Variant SKU: 3169 56 55 Parker | 10 |
Brand: LF 3000®
Series: 3169 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel, Nylon
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight, Coated, Swivel
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD UNF / Metric (C) E F G H L Oz
3169 53 20 1/8" 10-32 .20" 8 mm .33" .91" .75" .25 Oz
3169 04 20 5/32" 10-32 .20" 8 mm .33" .91" .75" .25 Oz
3169 56 20 1/4" 10-32 .20" 11 mm .33" 1.10" .93" .32 Oz
3169 56 55 1/4" M7x1 .18" 9 mm .43" 1.17" .93" .35 Oz
