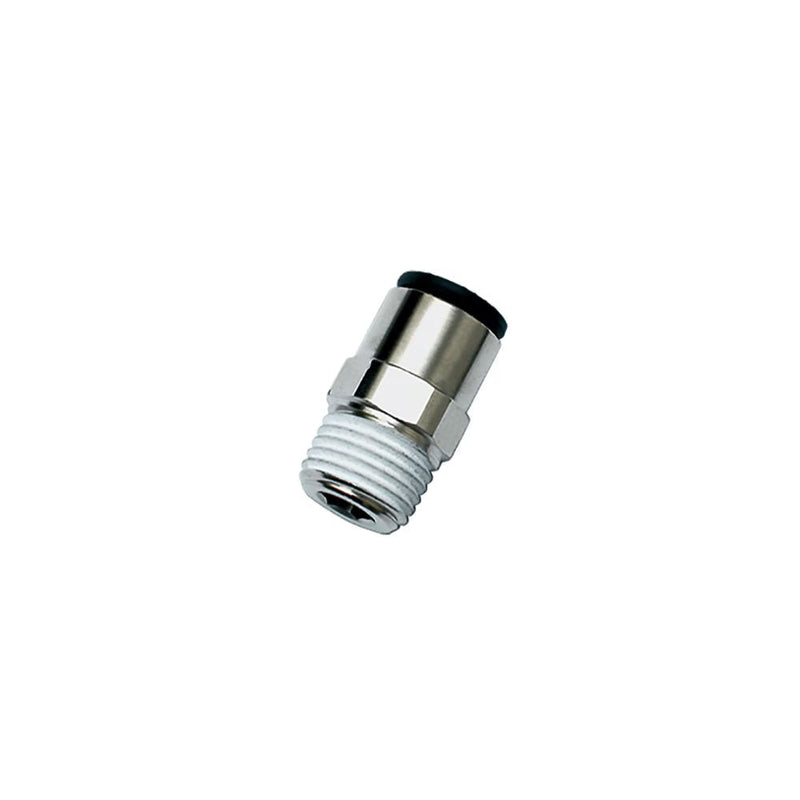

3175 04 10 by Parker | Legris Stud Fitting | 4 mm Push-to-Connect x 1/8" Male BSPT Thread | 10 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $10.96

$50.56

$50.56 - $50.56

$50.56

$39.60

$39.60 - $39.60

$39.60

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3175 Stud Fitting, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3175 04 10 Parker \| 10 \|
Brand:	LF 3000®
Series:	3175 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F1	F2	H	Kg
3175 04 10	4 mm	1/8"	10 mm	3 mm	9.5 mm	.005 Kg
3175 04 13	4 mm	1/4"	14 mm	3 mm	6.5 mm	.011 Kg
3175 04 17	4 mm	3/8"	17 mm	3 mm	8 mm	.024 Kg
3175 06 10	6 mm	1/8"	11 mm	4 mm	11.5 mm	.005 Kg
3175 06 13	6 mm	1/4"	14 mm	4 mm	8.5 mm	.011 Kg
3175 06 17	6 mm	3/8"	17 mm	4 mm	8.5 mm	.021 Kg
3175 06 21	6 mm	1/2"	21 mm	4 mm	9 mm	.043 Kg
3175 08 10	8 mm	1/8"	13 mm	5 mm	20 mm	.011 Kg
3175 08 13	8 mm	1/4"	14 mm	6 mm	17 mm	.014 Kg
3175 08 17	8 mm	3/8"	17 mm	6 mm	13 mm	.021 Kg
3175 08 21	8 mm	1/2"	21 mm	6 mm	12 mm	.039 Kg
3175 10 10	10 mm	1/8"	16 mm	5 mm	22.5 mm	.017 Kg
3175 10 13	10 mm	1/4"	16 mm	7 mm	20 mm	.017 Kg
3175 10 17	10 mm	3/8"	17 mm	8 mm	16.5 mm	.019 Kg
3175 10 21	10 mm	1/2"	21 mm	8 mm	14 mm	.036 Kg
3175 12 13	12 mm	1/4"	19 mm	7 mm	26.5 mm	.029 Kg
3175 12 17	12 mm	3/8"	19 mm	9 mm	24 mm	.028 Kg
3175 12 21	12 mm	1/2"	21 mm	10 mm	19.5 mm	.036 Kg
3175 14 17	14 mm	3/8"	22 mm	9 mm	28.5 mm	.044 Kg
3175 14 21	14 mm	1/2"	24 mm	10 mm	23.5 mm	.046 Kg
3175 16 17	16 mm	3/8"	27 mm	9 mm	32.5 mm	.068 Kg
3175 16 21	16 mm	1/2"	27 mm	12 mm	32.5 mm	.079 Kg

Pre-coated thread
