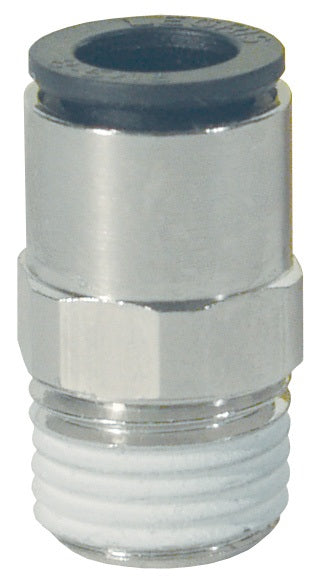

31756218 by Dixon Valve | Legris Push-In Fitting | Male Connector | 1/2" Tube OD x 3/8" Male NPT | Nylon / Nickel-Plated Brass

31756218 by Dixon Valve | Legris Push-In Fitting | Male Connector | 1/2" Tube OD x 3/8" Male NPT | Nylon / Nickel-Plated Brass

Save $1.10 Save $1.10
$11.85
$11.85 - $11.85
$11.85
$10.75
$10.75 - $10.75
$10.75

Dixon Valve & Coupling
Legris Push-In Fitting | Male Connector | Male NPT x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.
Specifications for Variant SKU: 31756218 Dixon
Brand: Legris
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-to-Connect, 3/8in Male NPT
Material(s): Nickel-Plated Brass, Nylon
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant on all tapered male pipe threads.
Construction:
  • Nickel-plated brass threads.
  • Black body is glass-filled nylon.
  • Nitrile Rubber D seal.
  • Polypropylene release button.
  • Silicone free.
Specifications:
  • Working pressure: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Pressure rating given at ambient temperature 70°F/21°C.
Part Number Tube O.D. Male NPT
31755308 1/8" 1/16"
31755311 1/8" 1/8"
31755314 1/8" 1/4"
31750411 5/32" 1/8"
31750414 5/32" 1/4"
31755611 1/4" 1/8"
31755614 1/4" 1/4"
31755618 1/4" 3/8"
31750811 5/16" 1/8"
31750814 5/16" 1/4"
31750818 5/16" 3/8"
31756011 3/8" 1/8"
31756014 3/8" 1/4"
31756018 3/8" 3/8"
31756022 3/8" 1/2"
31756214 1/2" 1/4"
31756218 1/2" 3/8"
31756222 1/2" 1/2"
