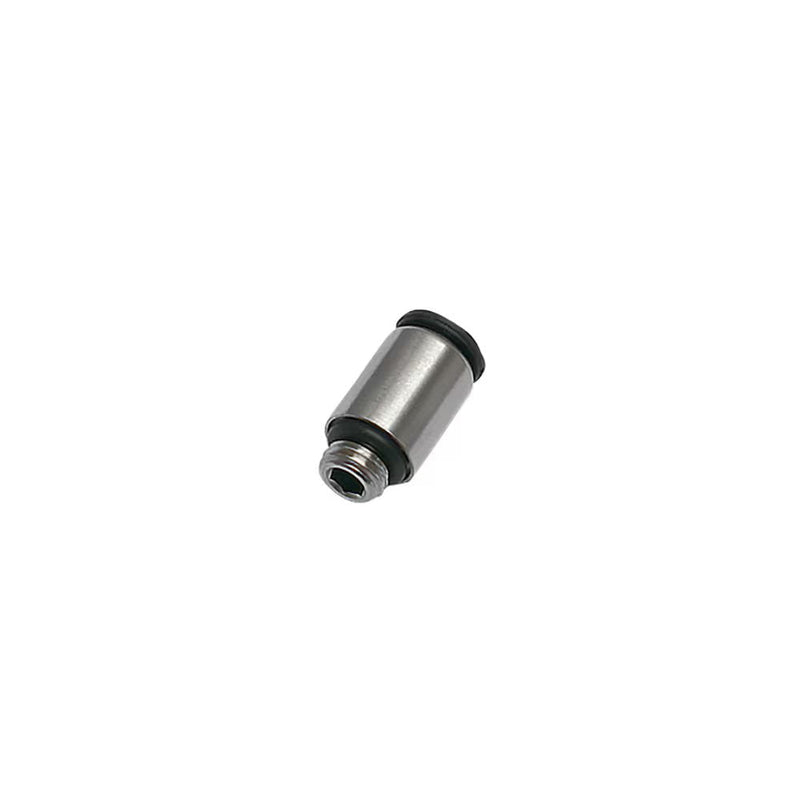

3181 06 19 by Parker | Legris Stud Fitting | 6 mm Push-to-Connect x M5x0.8 Male M5 Thread | Straight | Polymer | Pack of 10

Save $4.21

$46.30

$46.30 - $46.30

$46.30

$42.09

$42.09 - $42.09

$42.09

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3181 Stud Fitting Round Body, Male Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3181 06 19 Parker \| 10 \|
Brand:	LF 3000®
Series:	3181 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F1	F2	H	Kg
3181 04 19	4 mm	M5x0.8	3.5 mm	2.5 mm	8.5 mm	14.5 mm	.003 Kg
3181 04 55	4 mm	M7x1	5 mm	3 mm	10 mm	14 mm	.004 Kg
3181 06 19	6 mm	M5x0.8	3.5 mm	2.5 mm	11 mm	16.5 mm	.005 Kg
3181 06 55	6 mm	M7x1	5 mm	3 mm	10 mm	16 mm	.005 Kg

The internal hexagon and circular external shape ensure that model 3181 provides highly compact assembly

They can be easily installed with an Allen key without the need of a spanner.
