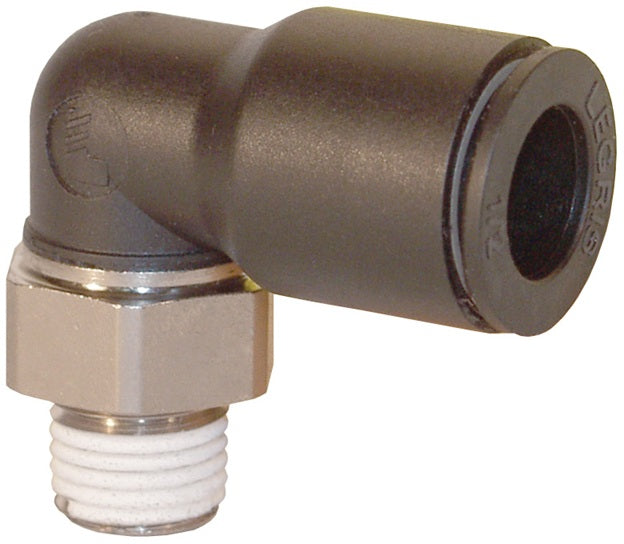

31991013 by Dixon Valve | Legris Metric Push-In Fitting | Male Connector | 90° Elbow | 10mm Tube OD x 1/4" Male BSPP | Nylon / Nickel Plated Brass

Save $1.37

$14.76

$14.76 - $14.76

$14.76

$13.39

$13.39 - $13.39

$13.39

Dixon Valve & Coupling
Metric Push-In Fitting | Male Connector | 90° Elbow | Tube End x Male BSPP

Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.

Quantity

Specifications for Variant SKU: 31991013 Dixon
Shape (Orientation):	90 Degree
Ends Configuration:	10mm Push-to-Connect, 1/4in Male BSPP
Material(s):	Nickel-Plated Brass, Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Positive seal: sealing and holding is accomplished instantaneously. Reusable: connect and disconnect numerous times. Full flow: fitting seals on outside diameter of tubing. The body is orientable for positioning purposes.
Construction:
Black glass-filled nylon body Polypropylene release button Nickel-plated brass threads Silicone free Nitrile Rubber D-seal
Installation:
Quick connect and disconnect, no tools required. To connect, simply push tubing in. To disconnect, press the release ring towards the fitting and pull tubing out.
Specifications:
Temperature Range: -4°F to 175°F (-20°C to 79°C) Vacuum capability: vacuum of 28" Hg (99% vacuum) Pressure Rating: 290 PSI at 70°F (21°C)

Part Number	Tube O.D.	Male Thread
31990419	4mm	M5
31990410	4mm	1/8 BSPP
31990619	6mm	M5
31990610	6mm	1/8 BSPP
31990613	6mm	1/4 BSPP
31990810	8mm	1/8 BSPP
31990813	8mm	1/4 BSPP
31991013	10mm	1/4 BSPP
