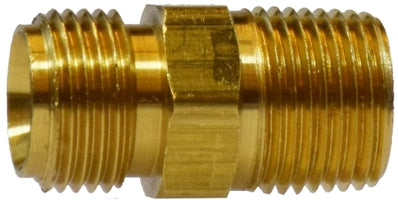

32032 (32-032) Midland Ballseat Male Adapter (Beveled Seat) - 1/2" Male NPSM x 1/2" Male NPTF - Brass

32032 by Midland | Ballseat (Beveled Seat) | 1/2" Male NPSM x 1/2" Male NPTF | Adapter | Brass

Save $0.59 Save $0.59
$5.33
$5.33 - $5.33
$5.33
$4.74
$4.74 - $4.74
$4.74

Midland Industries
Brass Fitting - Ballseat Male Adapter (Beveled Seat)

30° Seat

Inventory @ Manufacturers Warehouse: 2108 Units
Specifications for Variant SKU: 32032 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPSM, 1/2in Male NPTF
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
172 134 127HB 122AS
Part Number Male NPSM x Male NPTF A Hex Approx. Weight
(Lbs.)
32359
(32-359) 		1/8" x 1/8" 0.94" 0.43" 0.03
32034
(32-034) 		1/4" x 1/8" 1.06" 0.56" 0.04
32030
(32-030) 		1/4" x 1/4" 1.25" 0.56" 0.06
32362
(32-362) 		3/8" x 1/4" 1.28" 0.68" 0.08
32031
(32-031) 		3/8" x 3/8" 1.30" 0.68" 0.08
32392
(32-392) 		3/8" x 1/2" 1.47" 0.88" 0.13
32364
(32-364) 		1/2" x 3/8" 1.35" 0.87" 0.10
32032
(32-032) 		1/2" x 1/2" 1.53" 0.87" 0.14
32033
(32-033) 		3/4" x 3/4" 1.53" 1.06" 0.20
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
