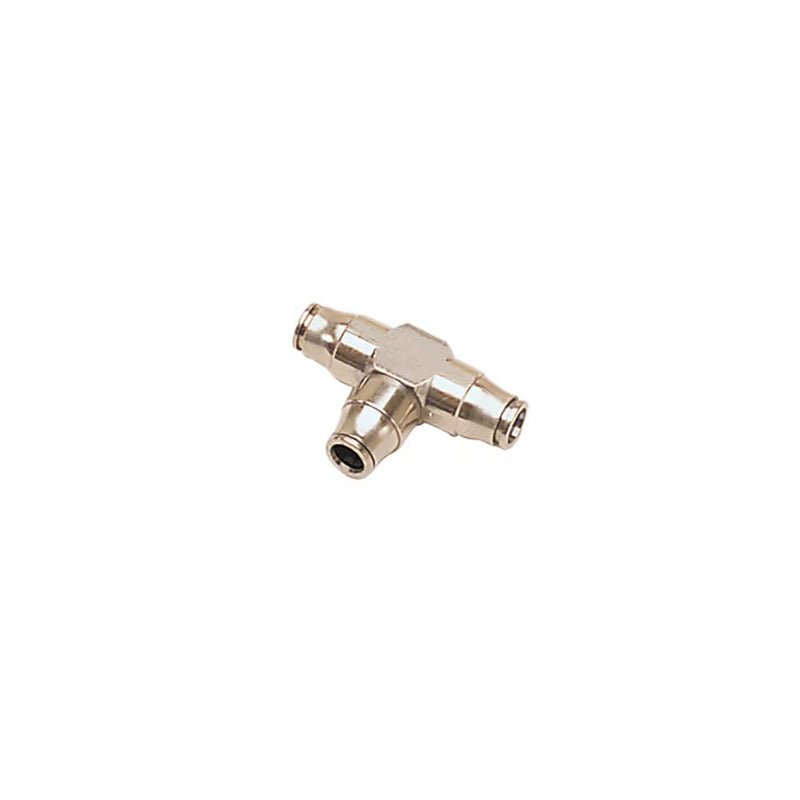

3204 03 00 by Parker | Legris 3 mm Tube Size | 20.5 mm Length | Tee | Nickel-Plated Brass | Pack of 10

Save $207.47

$518.67

$518.67 - $518.67

$518.67

$311.20

$311.20 - $311.20

$311.20

by Parker Hannifin
LF 3200® Push-In Fittings (3 mm):3204 Equal Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 3204 03 00 Parker \| 10 \|
Series:	3204 Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -15°C to +80°C Tightening Torque (daN.m): 0.01 to .1
Advantages:	Optimization of equipment: weight, small dimensions Nickel-plated brass components for better impact and corrosion resistance
Regulations:	ISO 14743 PED RoHS ATEX (please consult us) REACH
Component Materials:	Body: Chemical nickel-plated brass Adaptor: Chemical nickel-plated brass Protection ring: Electroless nickel-plated brass Collet: Chemical nickel-plated brass Seal: PTFE O-Ring: NBR


Part Number	ØD	G	H	J	L	L1	Kg
3204 03 00	3 mm	6 mm	13.5 mm	6 mm	20.5 mm	10.5 mm	.004 Kg
