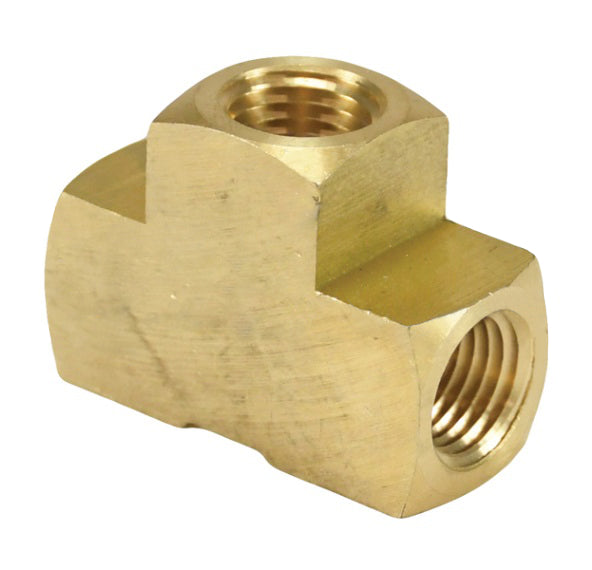

3220202C by Dixon Valve | Female Tee | 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Female NPTF | Extruded Brass

Name: 3220202C by Dixon Valve | Female Tee | 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Female NPTF | Extruded Brass
Brand: Dixon
SKU: 3220202C Dixon
Price: 3.28 USD
Availability: InStock

Save $0.08

$3.36

$3.36 - $3.36

$3.36

$3.28

$3.28 - $3.28

$3.28

Dixon Valve
Pipe Fitting | Female Tee | Female NPTF x Female NPTF x Female NPTF

Quantity

Specifications for Variant SKU: 3220202C Dixon
Series:	322 Series
Shape (Orientation):	Tee
Ends Configuration:	1/8in Female NPTF, 1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s):	Brass

Specifications:
Ref SAE 130438 Extruded Dryseal
Safety Notes:
Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745

Extruded Brass Part Number	Previous Part Number	Female NPTF
3220202C*	322-0202	1/8" x 1/8" x 1/8"
3220404C*	322-0404	1/4" x 1/4" x 1/4"
3220606C	322-0606	3/8" x 3/8" x 3/8"
3220808C	322-0808	1/2" x 1/2" x 1/2"
3221212C	322-1212	3/4" x 3/4" x 3/4"

Forged Lead-Free Brass Part Number	316 Stainless Steel Part Number	Female NPT
-	3220202SS	1/8" x 1/8" x 1/8"
3220404CLF	3220404SS	1/4" x 1/4" x 1/4"
3220606CLF	3220606SS	3/8" x 3/8" x 3/8"
-	3220808SS	1/2" x 1/2" x 1/2"
-	3221212SS	3/4" x 3/4" x 3/4"
-	3221616SS	1" x 1" x 1"

* Product shape may vary
