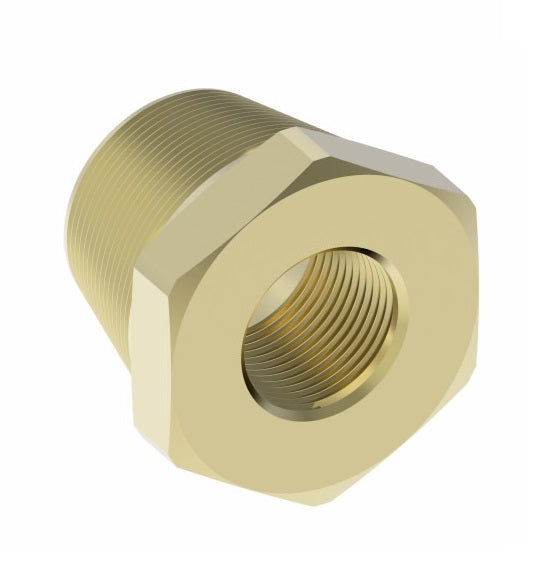

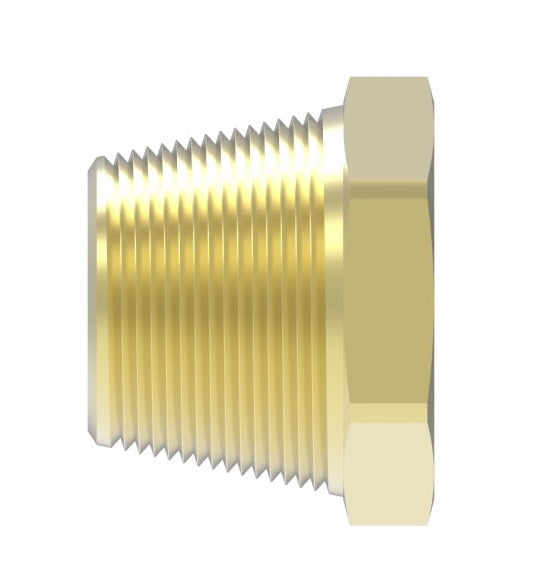

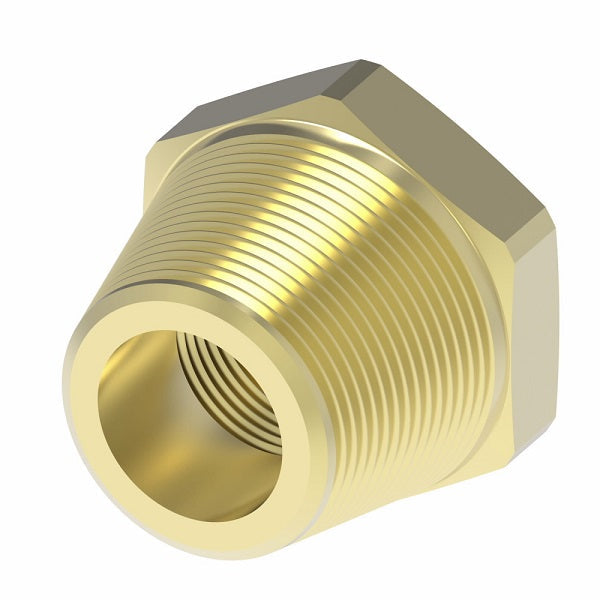

3220X12X6Z by Danfoss | Pipe Adapter | Bushing (with Sealant) | 3/4" Male NPTF (Short Thread) x 3/8" Female NPTF | Brass
3220X12X6Z by Danfoss | Pipe Adapter | Bushing (with Sealant) | 3/4" Male NPTF (Short Thread) x 3/8" Female NPTF | Brass
3220X12X6Z by Danfoss | Pipe Adapter | Bushing (with Sealant) | 3/4" Male NPTF (Short Thread) x 3/8" Female NPTF | Brass
3220X12X6Z by Danfoss | Pipe Adapter | Bushing (with Sealant) | 3/4" Male NPTF (Short Thread) x 3/8" Female NPTF | Brass

3220X12X6Z by Danfoss | Pipe Adapter | Bushing (with Sealant) | 3/4" Male NPTF (Short Thread) x 3/8" Female NPTF | Brass

$10.06 - $10.06
$10.06
$10.06 - $10.06
$10.06

Aeroquip® by Danfoss
Pipe Adapter - Bushing
Specifications for Variant SKU: 3220X12X6Z Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF, 3/8in Female NPTF
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130140
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Male Pipe
Thread		 Female Pipe
Thread		 Hex
C		 D L
3220X4X2 3220X4X2Z 1/4"* 1/8" 5/8" 0.339" 0.59"
3220X6X2 3220X6X2Z 3/8" 1/8" 11/16" 0.328" 0.75"
3220X6X4 3/8"* 1/4" 11/16" 0.438" 0.69"
3220X8X2 3220X8X2Z 1/2"* 1/8" 7/8" 0.530"** 0.75"
3220X8X4 3220X8X4Z 1/2"* 1/4" 7/8" 0.438"** 0.75"
3220X8X6 3220X8X6Z 1/2"* 3/8" 7/8" 0.562" 0.75"
3220X12X6 3220X12X6Z 3/4"* 3/8" 1-1/8" 0.562" 0.88"
3220X12X8 3220X12X8Z 3/4"* 1/2" 1-1/8" 0.703" 0.88"

* PTF Short Thread

** Optional Counterbore
