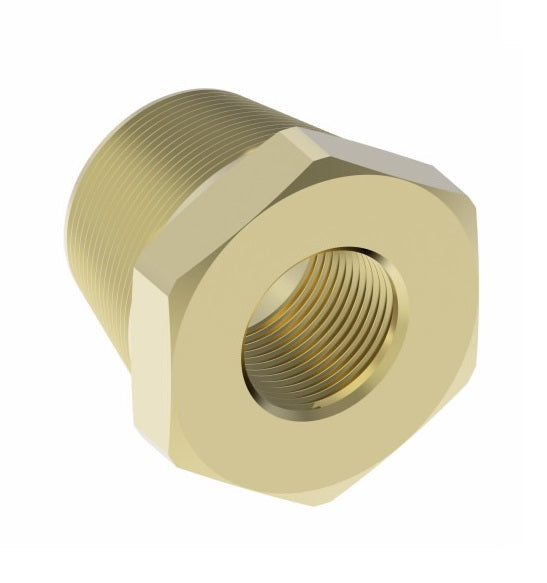

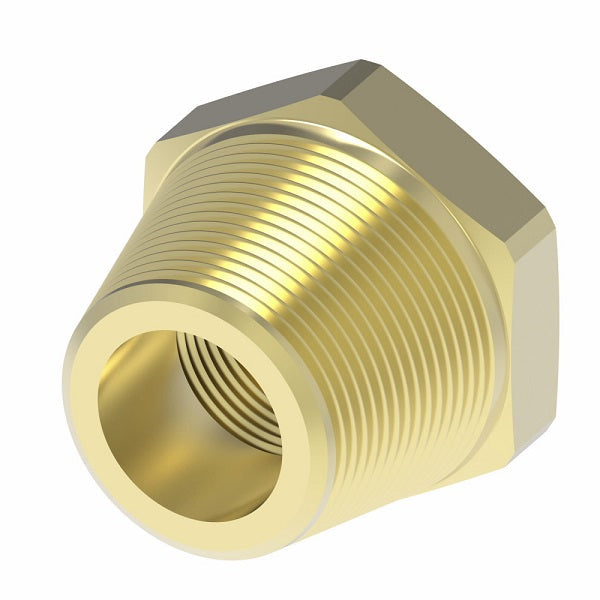

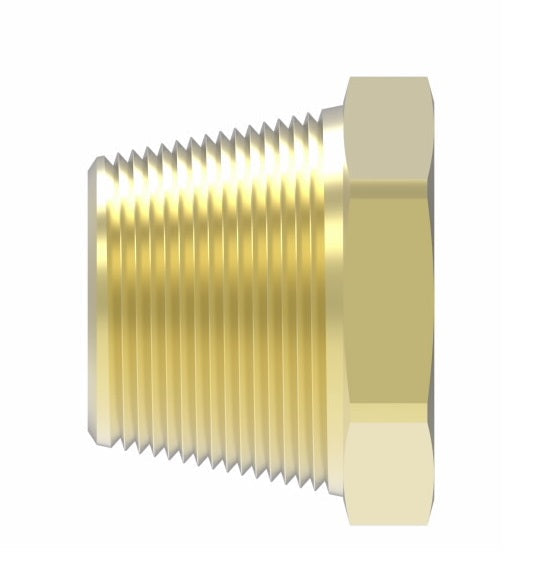

3220X8X4 by Danfoss | Pipe Adapter | Bushing | 1/2" Male NPTF (Short Thread) x 1/4" Female NPTF | Brass

3220X8X4 by Danfoss | Pipe Adapter | Bushing | 1/2" Male NPTF (Short Thread) x 1/4" Female NPTF | Brass Pack of 10

$28.40 - $28.40

$28.40

$28.40 - $28.40

$28.40

Aeroquip® by Danfoss
Pipe Adapter - Bushing

Package Quantity: 10 Units

Specifications for Variant SKU: 3220X8X4-BG Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPTF, 1/4in Female NPTF
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Ref. SAE No. 130140 Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Brass with Sealant Part Number	Male Pipe Thread	Female Pipe Thread	Hex C	D	L
3220X4X2	3220X4X2Z	1/4"*	1/8"	5/8"	0.339"	0.59"
3220X6X2	3220X6X2Z	3/8"	1/8"	11/16"	0.328"	0.75"
3220X6X4		3/8"*	1/4"	11/16"	0.438"	0.69"
3220X8X2	3220X8X2Z	1/2"*	1/8"	7/8"	0.530"**	0.75"
3220X8X4	3220X8X4Z	1/2"*	1/4"	7/8"	0.438"**	0.75"
3220X8X6	3220X8X6Z	1/2"*	3/8"	7/8"	0.562"	0.75"
3220X12X6	3220X12X6Z	3/4"*	3/8"	1-1/8"	0.562"	0.88"
3220X12X8	3220X12X8Z	3/4"*	1/2"	1-1/8"	0.703"	0.88"

* PTF Short Thread

** Optional Counterbore
