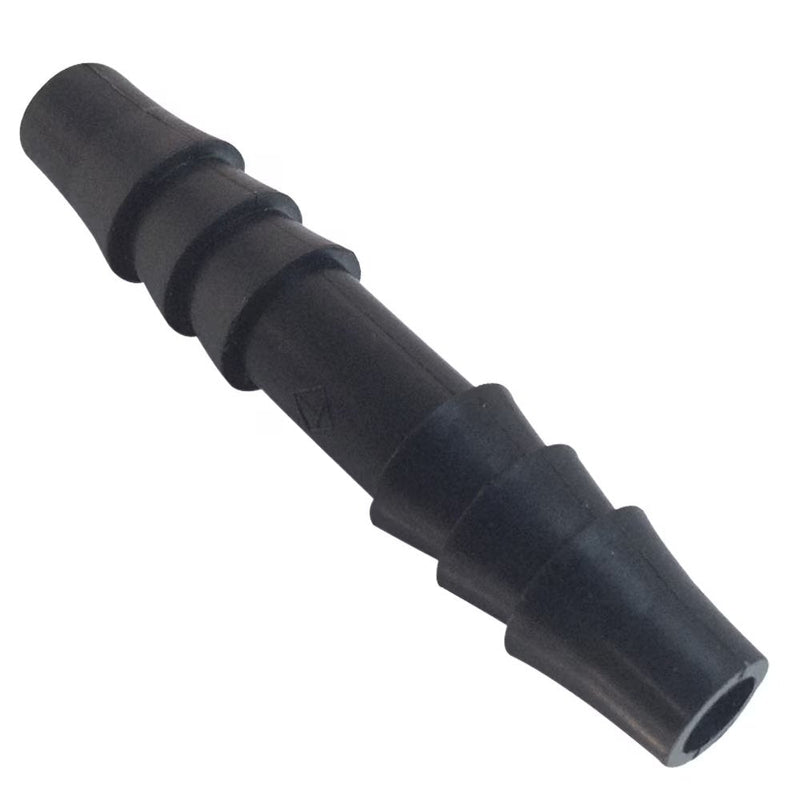

322HB-10-6PP by Parker | Tube to Tube Fitting | 5/8" Union Barb x 3/8" Barb | 1.73" Length | Straight | Black | Polypropylene

322HB-10-6PP by Parker | Tube to Tube Fitting | 5/8" Union Barb x 3/8" Barb | 1.73" Length | Straight | Black | Polypropylene

Save $0.30 Save $0.30
$0.75
$0.75 - $0.75
$0.75
$0.45
$0.45 - $0.45
$0.45

by Parker Hannifin
Par-Barb® Fittings:Union Connector 322HB
Specifications for Variant SKU: 322HB-10-6PP Parker
Brand: Par-Barb®
Series: 322HB Series
Shape (Orientation): Straight
Material(s): Polypropylene
Special Properties: Water and Beverage
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number Tube Or Hose ID 1 Tube Or Hose ID 2 OD 1 OD 2 L Flow Diameter (D)
322HB-3N 322HB-3PP 3/16" 3/16" .25" .25" 1.61" .12"
322HB-4-3N 322HB-4-3PP 1/4" 3/16" .31" .25" 1.61" .13"
322HB-4N 322HB-4PP 1/4" 1/4" .31" .31" 1.61" .16"
322HB-5N 322HB-5PP 5/16" 5/16" .37" .37" 1.61" .22"
322HB-6-4N 322HB-6-4PP 3/8" 1/4" .43" .31" 1.61" .15"
322HB-6N 322HB-6PP 3/8" 3/8" .43" .43" 1.61" .25"
322HB-8-4N 322HB-8-4PP 1/2" 1/4" .55" .31" 1.73" .15"
322HB-8-6N 322HB-8-6PP 1/2" 3/8" .55" .43" 1.73" .25"
322HB-8N 322HB-8PP 1/2" 1/2" .56" .56" 1.74" .38"
322HB-10-6N 322HB-10-6PP 5/8" 3/8" .66" .43" 1.73" .25"
322HB-10-8N 322HB-10-8PP 5/8" 1/2" .66" .55" 1.73" .37"
322HB-10N 322HB-10PP 5/8" 5/8" .67" .67" 1.73" .47"
322HB-12N 322HB-12PP 3/4" 3/4" .80" .80" 2.97" .58"
322HB-16N - 1" 1" 1.08" 1.08" 3.12" .82"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
