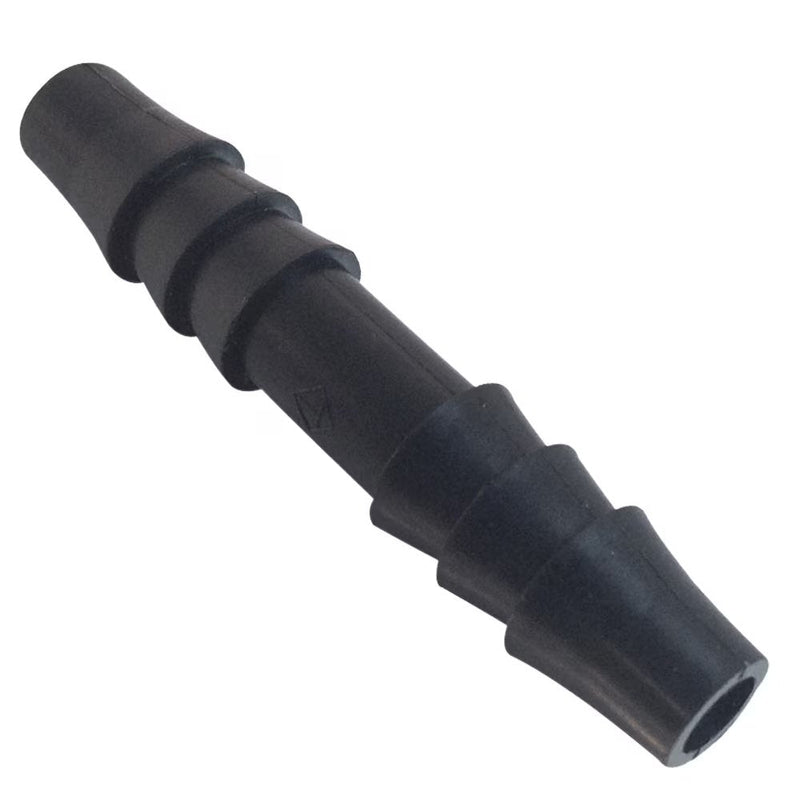

322HB-3PP by Parker | Tube to Tube Fitting | 3/16" Union Barb x 3/16" Barb | 1.61" Length | Straight | Black | Polypropylene

322HB-3PP by Parker | Tube to Tube Fitting | 3/16" Union Barb x 3/16" Barb | 1.61" Length | Straight | Black | Polypropylene

Save $0.88 Save $0.88
$1.28
$1.28 - $1.28
$1.28
$0.40
$0.40 - $0.40
$0.40

by Parker Hannifin
Par-Barb® Fittings:Union Connector 322HB
Specifications for Variant SKU: 322HB-3PP Parker
Brand: Par-Barb®
Series: 322HB Series
Shape (Orientation): Straight
Material(s): Polypropylene
Special Properties: Water and Beverage
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number Tube Or Hose ID 1 Tube Or Hose ID 2 OD 1 OD 2 L Flow Diameter (D)
322HB-3N 322HB-3PP 3/16" 3/16" .25" .25" 1.61" .12"
322HB-4-3N 322HB-4-3PP 1/4" 3/16" .31" .25" 1.61" .13"
322HB-4N 322HB-4PP 1/4" 1/4" .31" .31" 1.61" .16"
322HB-5N 322HB-5PP 5/16" 5/16" .37" .37" 1.61" .22"
322HB-6-4N 322HB-6-4PP 3/8" 1/4" .43" .31" 1.61" .15"
322HB-6N 322HB-6PP 3/8" 3/8" .43" .43" 1.61" .25"
322HB-8-4N 322HB-8-4PP 1/2" 1/4" .55" .31" 1.73" .15"
322HB-8-6N 322HB-8-6PP 1/2" 3/8" .55" .43" 1.73" .25"
322HB-8N 322HB-8PP 1/2" 1/2" .56" .56" 1.74" .38"
322HB-10-6N 322HB-10-6PP 5/8" 3/8" .66" .43" 1.73" .25"
322HB-10-8N 322HB-10-8PP 5/8" 1/2" .66" .55" 1.73" .37"
322HB-10N 322HB-10PP 5/8" 5/8" .67" .67" 1.73" .47"
322HB-12N 322HB-12PP 3/4" 3/4" .80" .80" 2.97" .58"
322HB-16N - 1" 1" 1.08" 1.08" 3.12" .82"
