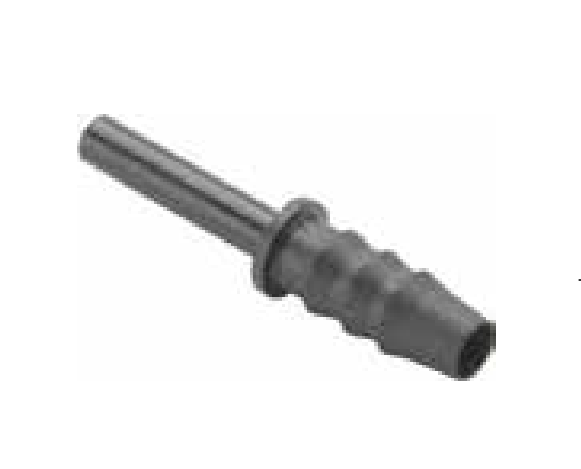

322PLPSP-10M-6M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 10mm OD 1 | 6.3mm OD 2 | 8.0mm Barb | Barbed Connector | 45.0mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

Save $11.78

$61.11

$61.11 - $61.11

$61.11

$49.33

$49.33 - $49.33

$49.33

by Parker Hannifin
Push-to-Connect Fittings:322PLPSP Barbed Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 322PLPSP-10M-6M Parker \| 10 \|
Series:	322PLPSP Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	OD 1	OD 2	OD 3	L	L1	L2
322PLPSP-4M-5M	4 mm	5.0 mm	7.0 mm	37.0 mm	25.0 mm	17.0 mm
322PLPSP-6M-5M	6 mm	5.0 mm	7.0 mm	39.0 mm	25.0 mm	17.0 mm
322PLPSP-8M-8M	8 mm	8.0 mm	10.0 mm	44.5 mm	26.0 mm	22.0 mm
322PLPSP-10M-6M	10 mm	6.3 mm	8.0 mm	45.0 mm	24.5 mm	17.0 mm
322PLPSP-10M-8M	10 mm	8.0 mm	10.0 mm	50.0 mm	29.5 mm	22.0 mm
322PLPSP-12M-8M	12 mm	8.0 mm	10.0 mm	50.0 mm	26.0 mm	22.0 mm
322PLPSP-12M-10M	12 mm	10.0 mm	12.0 mm	48.5 mm	25.5 mm	22.5 mm
322PLPSP-12M-12M	12 mm	12.5 mm	14.5 mm	57.0 mm	34.0 mm	22.5 mm
322PLPSP-14M-12M	14 mm	12.5 mm	14.5 mm	59.5 mm	34.5 mm	22.5 mm
