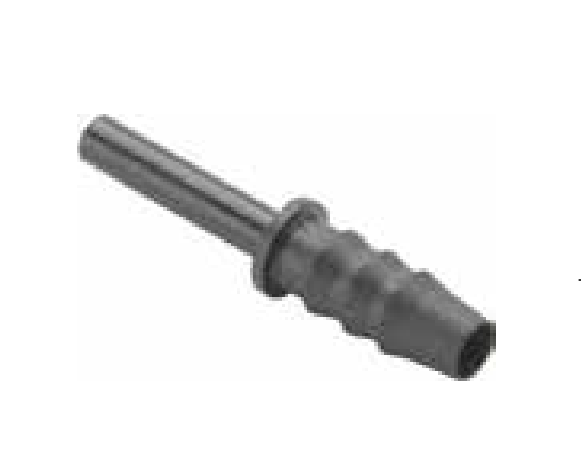

322PLPSP-4M-2 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 5/32" OD 1 | .12" OD 2 | .20" Barb | Barbed Connector | 1.46" Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

Save $9.19

$22.98

$22.98 - $22.98

$22.98

$13.79

$13.79 - $13.79

$13.79

by Parker Hannifin
Push-to-Connect Fittings:322PLPSP Barbed Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 322PLPSP-4M-2 Parker \| 10 \|
Series:	322PLPSP Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	OD 1	OD 2	OD 3	L	L1	L2
322PLPSP-4M-2	5/32"	.120"	.20"	1.46"	.98"	.67"
322PLPSP-4-3*	1/4"	3/16"	-	1.65"	1.00"	-
322PLPSP-8M-4	5/16"	.250"	.34"	1.55"	.83"	.67"
322PLPSP-6-8M	3/8"	.320"	.39"	1.97"	1.16"	.87"

*Nickel-plated brass. Dimensions for OD2 are I.D. of the tube.
