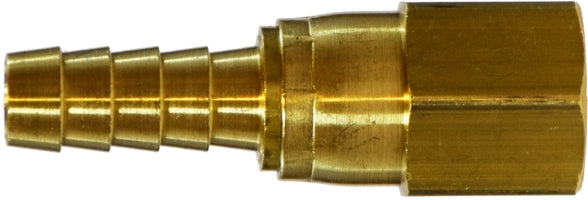

32470 (32-470) Midland Swivel Female Adapter - 1/4" Hose ID x 1/4" Female NPTF - Brass

32470 by Midland | Swivel | 1/4" Hose ID x 1/4" Female NPTF | Adapter | Brass

Save $5.03 Save $5.03
$12.57
$12.57 - $12.57
$12.57
$7.54
$7.54 - $7.54
$7.54

Midland Industries
Brass Fitting - Hose Barb - Swivel Female Adapter

Inventory @ Manufacturers Warehouse: 19 Units
Specifications for Variant SKU: 32470 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Female NPTF
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Part Number Hose I.D. x Female NPTF A B Hex Approx. Weight
(Lbs.)
32470
(32-470)		 1/4" x 1/4" 1.80" 0.97" 0.62" 0.06
32472
(32-472)		 3/8" x 1/4" 1.80" 0.97" 0.62" 0.06
32473
(32-473)		 3/8" x 3/8" 1.82" 0.97" 0.75" 0.09
32475
(32-475)		 1/2" x 3/8" 1.82" 0.97" 0.75" 0.09
32476
(32-476)		 1/2" x 1/2" 1.86" 0.97" 0.93" 0.14
