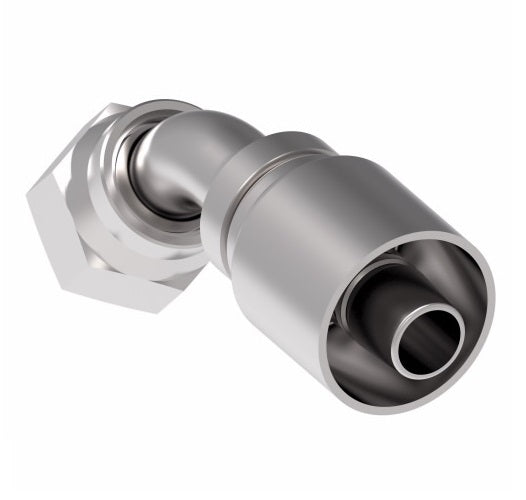

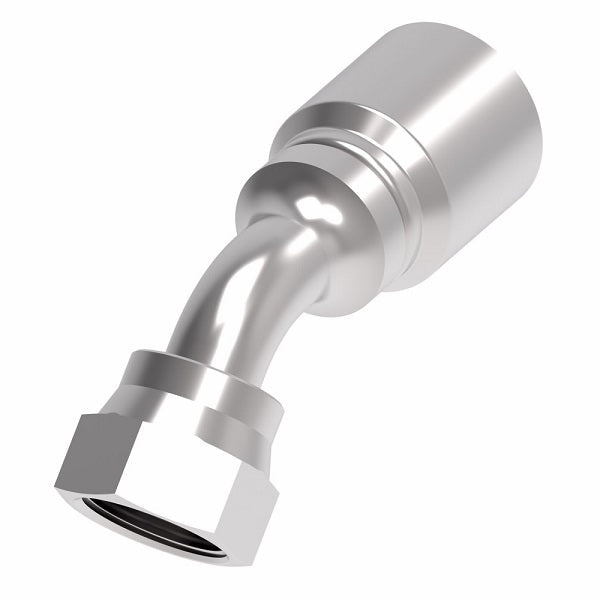

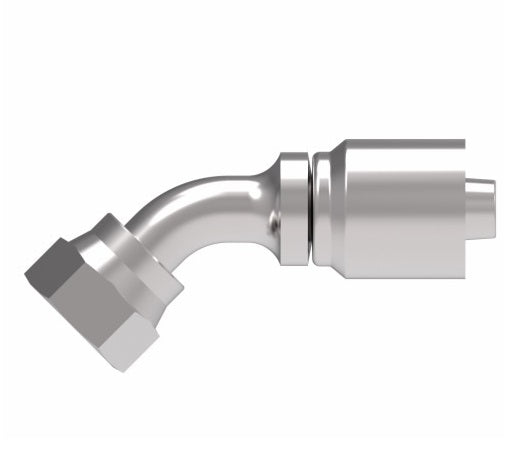

32708E-L68 Weatherhead by Danfoss | 327 'E' Series | Female ORS 45° Elbow Crimp Fitting | -08 Female O-Ring Face Seal x -08 Hose Barb | Steel

32708E-L68 Weatherhead by Danfoss | 327 'E' Series | Female ORS 45° Elbow Crimp Fitting | -08 Female O-Ring Face Seal x -08 Hose Barb | Steel

Name: 32708E-L68 Weatherhead by Danfoss | 327 'E' Series | Female ORS 45° Elbow Crimp Fitting | -08 Female O-Ring Face Seal x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 32708E-L68 Danfoss
Price: 25.41 USD
Availability: InStock

$25.41 - $25.41

$25.41

$25.41 - $25.41

$25.41

Weatherhead by Danfoss
Coll-O-Crimp 327 'E' Series Crimp Fitting - Female O-Ring Face Seal - 45° Elbow

Quantity

Specifications for Variant SKU: 32708E-L68 Danfoss
Brand:	Weatherhead
Series:	327 'E' Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	GH100 Series

Applications:
General purpose low and medium pressure hydraulics.
Pressure:
Determined by working pressure for hose and hose size.
Material:
Low carbon steel Plating: Clear trivalent chromate
Compatible Hose:
GH100


Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	H	Hose Cut-Off Factor	Hole Dia.	Hex 1
32706E-L66	-06	-06	11/16-16	2.43"	0.43"	1.43"	0.26"	13/16"
32708E-L68	-08	-08	13/16-16	2.96"	0.59"	1.79"	0.36"	15/16"
32712E-L72	-12	-12	1-3/16-12	3.57"	0.83"	2.38"	0.55"	1-3/8"

Note: Drawings may differ from actual parts.
