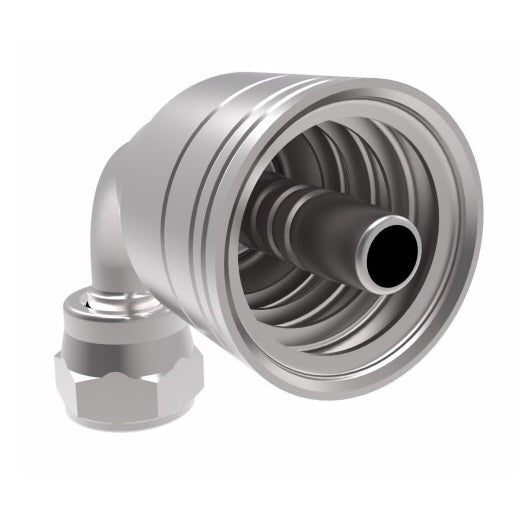

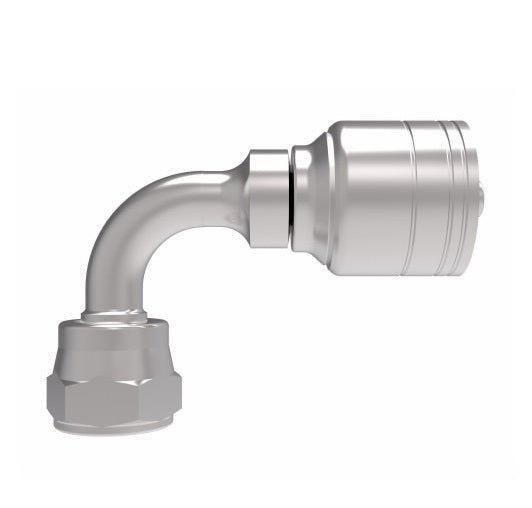

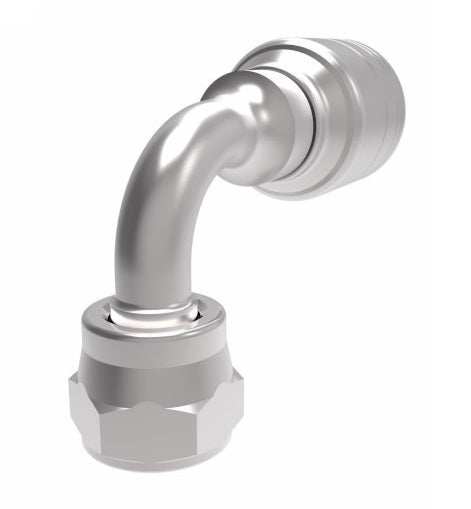

32710E-670 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel
32710E-670 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel
32710E-670 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel
32710E-670 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel

32710E-670 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel

$35.60 - $35.60
$35.60
$35.60 - $35.60
$35.60

Weatherhead by Danfoss
Coll-O-Crimp 327 'E' Series Crimp Fitting - Female 37° JIC Swivel - 90° Elbow
Specifications for Variant SKU: 32710E-670 Danfoss
Brand: Weatherhead
Series: 327 'E' Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH100 Series
Applications:
  • General purpose low and medium pressure hydraulics.
Pressure:
  • Determined by working pressure for hose and hose size.
Material:
  • Low carbon steel
  • Plating: Clear trivalent chromate
Compatible Hose:
  • GH100
Steel
Part Number		 Hose I.D. Tube Size Thread Size A H Hose Cut-Off
Factor		 Hole Dia. Hex
1
32706E-666 -06 -06 9/16-18 2.21" 0.84" 1.22" 0.24" 11/16"
32708E-668 -08 -08 3/4-16 2.59" 1.09" 1.42" 0.37" 7/8"
32710E-670 -10 -10 7/8-14 2.7" 1.19" 1.55" 0.46" 1"
32712E-672 -12 -12 1-1/6-12 3.36" 1.8" 2.17" 0.58" 1-1/4"

Note: Drawings may differ from actual parts.
