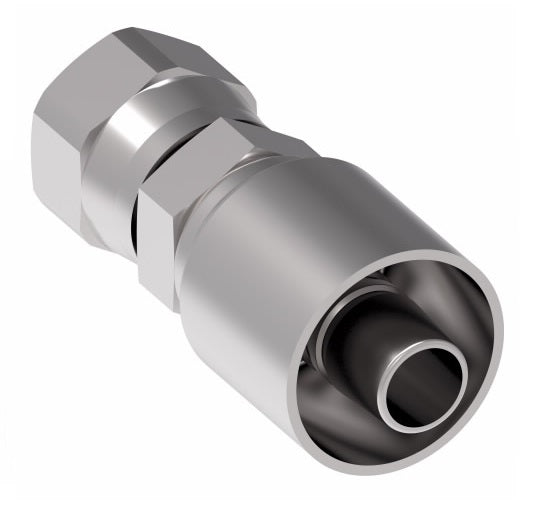

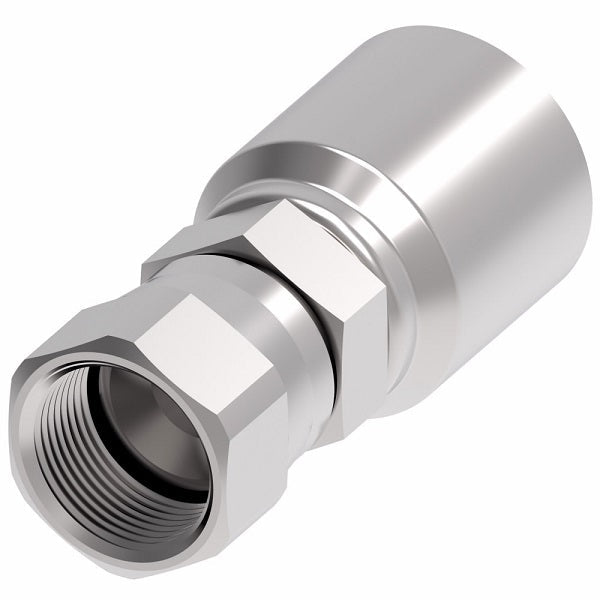

32712E-612 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Crimp Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel

32712E-612 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Crimp Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel

Name: 32712E-612 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Crimp Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 32712E-612 Danfoss
Price: 20.52 USD
Availability: InStock

$20.52 - $20.52

$20.52

$20.52 - $20.52

$20.52

Weatherhead by Danfoss
Coll-O-Crimp 327 'E' Series Crimp Fitting - Female 37° JIC Swivel - Straight

Specifications for Variant SKU: 32712E-612 Danfoss
Brand:	Weatherhead
Series:	327 'E' Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	GH100 Series

Applications:
General purpose low and medium pressure hydraulics.
Pressure:
Determined by working pressure for hose and hose size.
Material:
Low carbon steel Plating: Clear trivalent chromate
Compatible Hose:
GH100


Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	Hose Cut-Off Factor	Hole Dia.	Hex E	Hex F
32706E-606	-06	-06	9/16-18	2.19"	1.19"	0.26"	11/16"	11/16"
32708E-608	-08	-08	3/4-16	2.63"	1.46"	0.38"	7/8"	13/16"
32712E-612	-12	-12	1-1/6-12	2.84"	1.65"	0.61"	1-1/4"	1-1/8"

Note: Drawings may differ from actual parts.
