32712E-L72 Weatherhead by Danfoss | 327 'E' Series | Female ORS 45° Elbow Crimp Fitting | -12 Female O-Ring Face Seal x -12 Hose Barb | Steel
32712E-L72 Weatherhead by Danfoss | 327 'E' Series | Female ORS 45° Elbow Crimp Fitting | -12 Female O-Ring Face Seal x -12 Hose Barb | Steel
32712E-L72 Weatherhead by Danfoss | 327 'E' Series | Female ORS 45° Elbow Crimp Fitting | -12 Female O-Ring Face Seal x -12 Hose Barb | Steel
32712E-L72 Weatherhead by Danfoss | 327 'E' Series | Female ORS 45° Elbow Crimp Fitting | -12 Female O-Ring Face Seal x -12 Hose Barb | Steel

32712E-L72 Weatherhead by Danfoss | 327 'E' Series | Female ORS 45° Elbow Crimp Fitting | -12 Female O-Ring Face Seal x -12 Hose Barb | Steel

$47.55 - $47.55
$47.55
$47.55 - $47.55
$47.55

Weatherhead by Danfoss

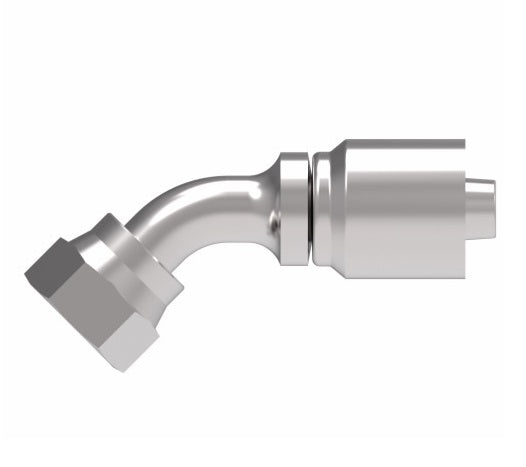

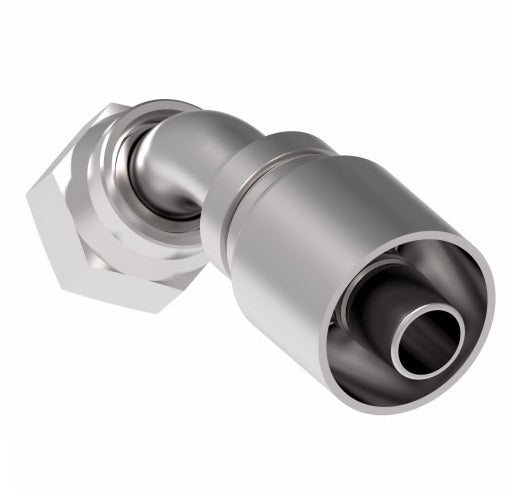

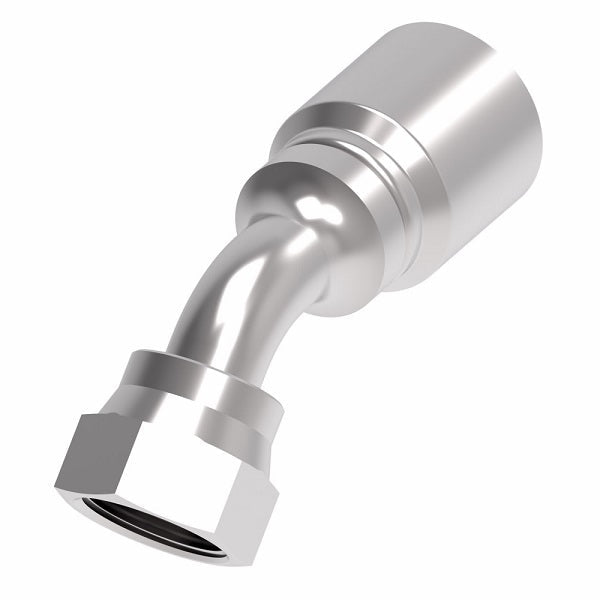

Coll-O-Crimp 327 'E' Series Crimp Fitting - Female O-Ring Face Seal - 45° Elbow
Specifications for Variant SKU: 32712E-L72 Danfoss
Brand: Weatherhead
Series: 327 'E' Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH100 Series
Applications:
  • General purpose low and medium pressure hydraulics.
Pressure:
  • Determined by working pressure for hose and hose size.
Material:
  • Low carbon steel
  • Plating: Clear trivalent chromate
Compatible Hose:
  • GH100
Steel
Part Number		 Hose I.D. Tube Size Thread Size A H Hose Cut-Off
Factor		 Hole Dia. Hex
1
32706E-L66 -06 -06 11/16-16 2.43" 0.43" 1.43" 0.26" 13/16"
32708E-L68 -08 -08 13/16-16 2.96" 0.59" 1.79" 0.36" 15/16"
32712E-L72 -12 -12 1-3/16-12 3.57" 0.83" 2.38" 0.55" 1-3/8"

Note: Drawings may differ from actual parts.
