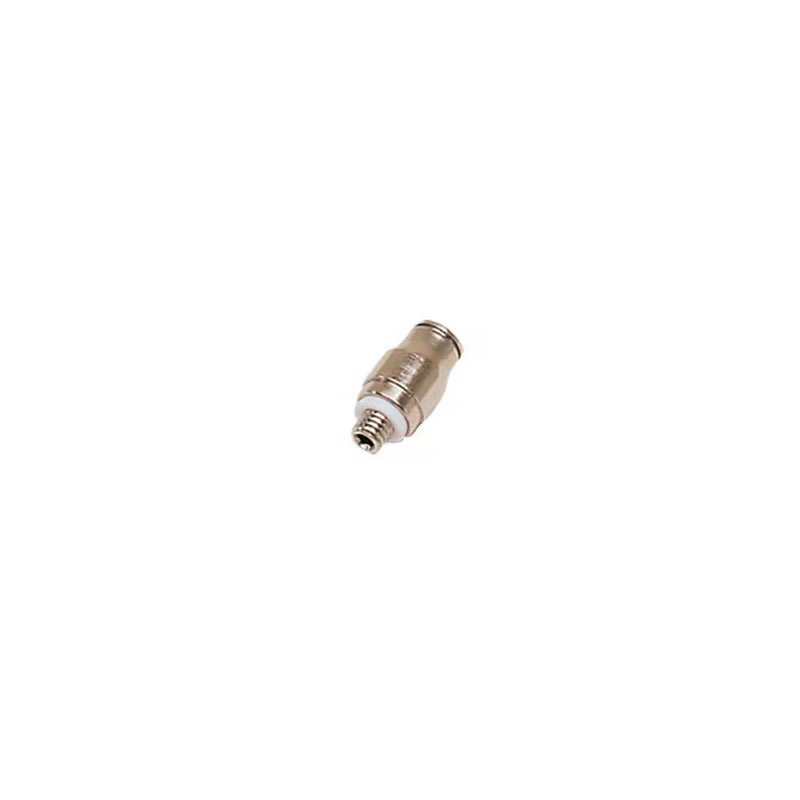

3281 03 09 by Parker | Legris Stud Fitting | 3 mm Tube Size x M3x0.5 Male Metric Thread | Straight | Nickel-Plated Brass | Pack of 10

Save $4.49

$121.56

$121.56 - $121.56

$121.56

$117.07

$117.07 - $117.07

$117.07

by Parker Hannifin
LF 3200® Push-In Fittings (3 mm):3281 Stud Fitting, Male Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3281 03 09 Parker \| 10 \|
Series:	3281 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -15°C to +80°C Tightening Torque (daN.m): 0.01 to .1
Advantages:	Optimization of equipment: weight, small dimensions Nickel-plated brass components for better impact and corrosion resistance
Regulations:	ISO 14743 PED RoHS ATEX (please consult us) REACH
Component Materials:	Body: Chemical nickel-plated brass Adaptor: Chemical nickel-plated brass Protection ring: Electroless nickel-plated brass Collet: Chemical nickel-plated brass Seal: PTFE O-Ring: NBR


Part Number	ØD	C	F	G	H	Kg
3281 03 09	3 mm	M3x0.5	1.5 mm	6 mm	9.5 mm	.001 Kg
3281 03 19	3 mm	M5x0.8	1.5 mm	8 mm	9.5 mm	.002 Kg
