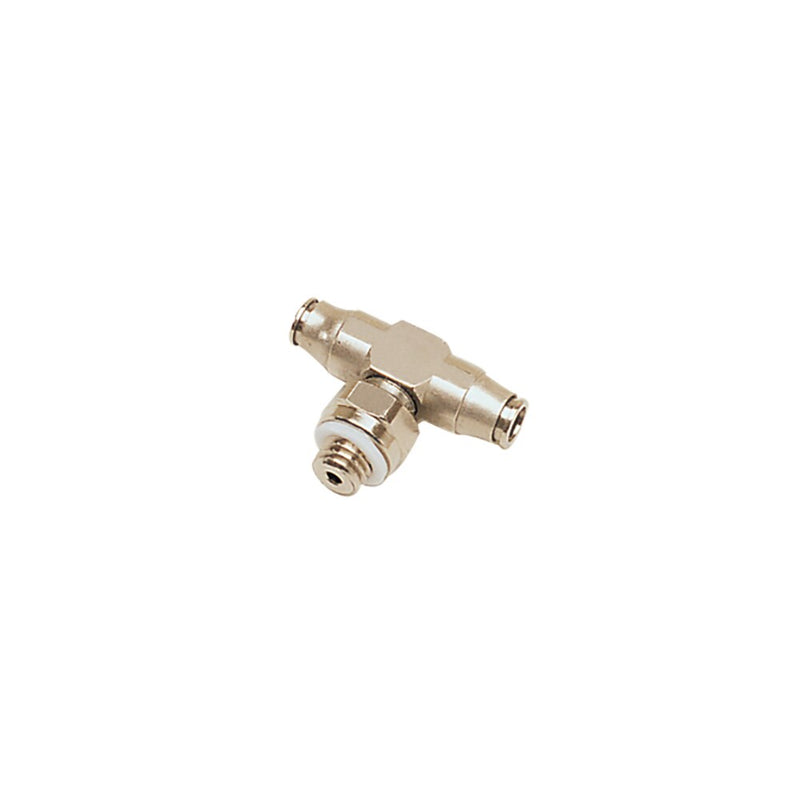

3298 03 19 by Parker | Legris Stud Branch Tee | 3 mm Tube Size x M5x0.8 Male Metric Thread | 20.5 mm Length | Tee | Nickel-Plated Brass

3298 03 19 by Parker | Legris Stud Branch Tee | 3 mm Tube Size x M5x0.8 Male Metric Thread | 20.5 mm Length | Tee | Nickel-Plated Brass | Pack of 10

Save $223.55 Save $223.55
$558.88
$558.88 - $558.88
$558.88
$335.33
$335.33 - $335.33
$335.33

by Parker Hannifin
LF 3200® Push-In Fittings (3 mm):3298 Stud Branch Tee, Male Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3298 03 19 Parker | 10 |
Series: 3298 Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Corrosion Resistance
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -15°C to +80°C
  • Tightening Torque (daN.m): 0.01 to .1
Advantages:
  • Optimization of equipment: weight, small dimensions
  • Nickel-plated brass components for better impact and corrosion resistance
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • ATEX (please consult us)
  • REACH
Component Materials:
  • Body: Chemical nickel-plated brass
  • Adaptor: Chemical nickel-plated brass
  • Protection ring: Electroless nickel-plated brass
  • Collet: Chemical nickel-plated brass
  • Seal: PTFE
  • O-Ring: NBR
Part Number ØD C F G H J L Kg
3298 03 19 3 mm M5x0.8 8 mm 6 mm 13.5 mm 6 mm 20.5 mm .004 Kg
