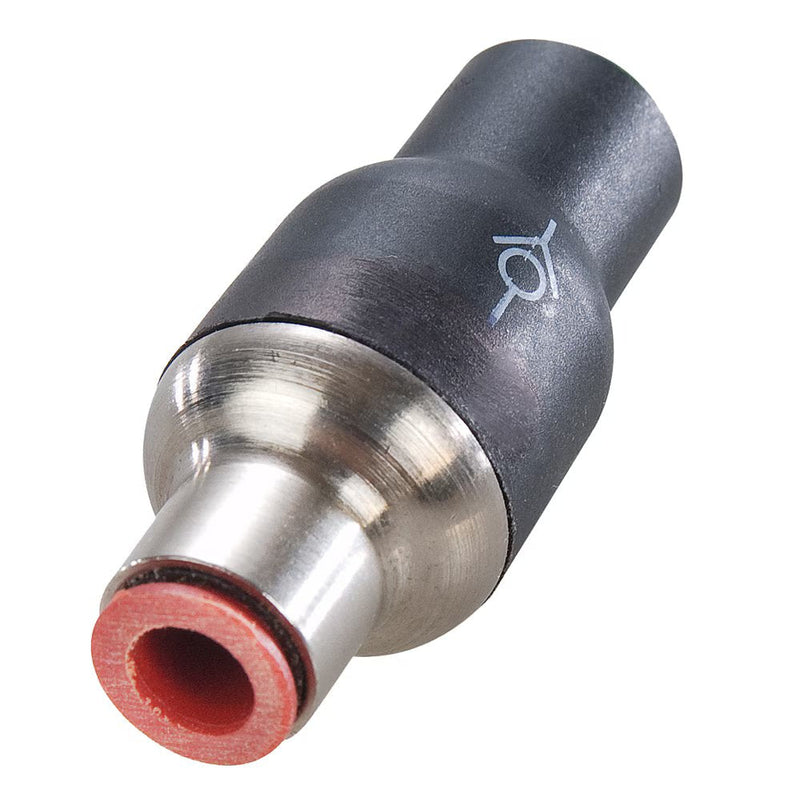

32PLCK-8M by Parker | In-Line Check Valve | 8 mm Push-to-Connect | 51.5 mm Length | Straight | Nylon/Nickel-Plated Brass | Pack of 10

Save $36.38

$309.18

$309.18 - $309.18

$309.18

$272.80

$272.80 - $272.80

$272.80

by Parker Hannifin
In-Line Check Valves:32PLCK In-Line Check Valve

Package Quantity: 10 Units

Specifications for Variant SKU: 32PLCK-8M Parker \| 10 \|
Series:	32PLCK Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Petrochemical, Valved

Product Features:	Nylon/Nickel-plated brass body VC – Acetal body Stainless steel gripping ring Nickel-plated brass threads Nitrile O-ring EPDM O-ring (VC)
Markets:	Factory/Process Automation Packaging Petrochemical Pneumatics Semi-Conductor
Applications:	Robotics Packaging Textile Machine Tools Pneumatic Systems Vacuum
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+34° to +150° F (+1.1° to 65.5° C)
Cracking Pressure:	PLCK – 7 PSI (0.4 bar), VC – 1/3 PSI (0.02 bar)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	L
32PLCK-4M	4 mm	38.5 mm
32PLCK-6M	6 mm	41.0 mm
32PLCK-8M	8 mm	51.5 mm
32PLCK-10M	10 mm	63.5 mm
32PLCK-12M	12 mm	66.5 mm
