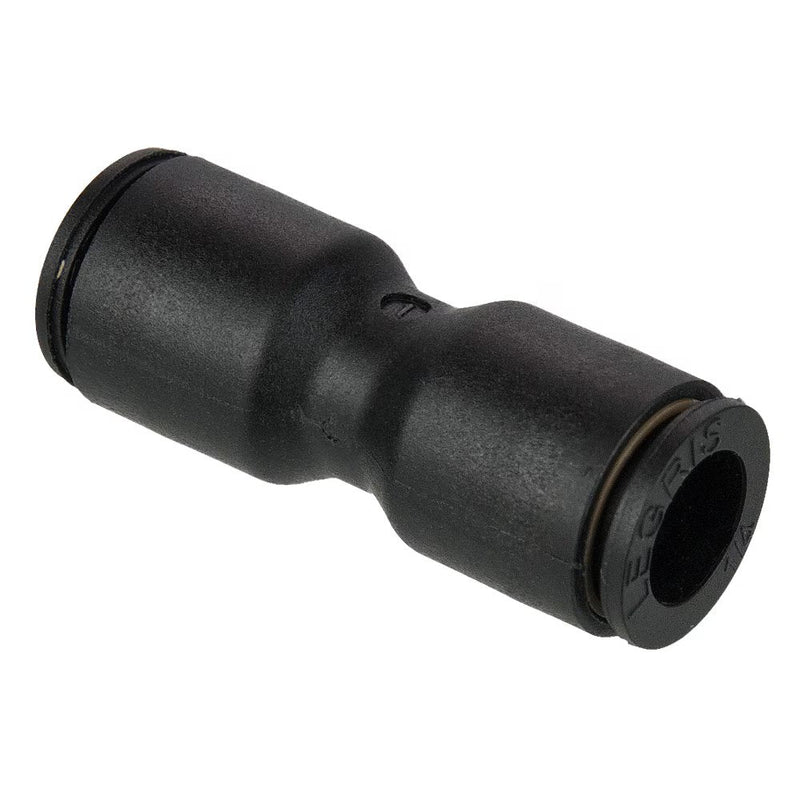

32PLP-12M-14M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 12mm to 14mm Unequal Union | 56.0mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

Save $21.45

$162.52

$162.52 - $162.52

$162.52

$141.07

$141.07 - $141.07

$141.07

by Parker Hannifin
Push-to-Connect Fittings:32PLP Unequal Union

Package Quantity: 10 Units

Specifications for Variant SKU: 32PLP-12M-14M Parker \| 10 \|
Series:	32PLP Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	L
32PLP-3M-4M	3 mm	4 mm	25.0 mm
32PLP-6M-4M	6 mm	4 mm	28.0 mm
32PLP-8M-4M	8 mm	4 mm	28.0 mm
32PLP-8M-6M	8 mm	6 mm	38.0 mm
32PLP-10M-6M	10 mm	6 mm	42.0 mm
32PLP-10M-8M	10 mm	8 mm	42.0 mm
32PLP-12M-8M	12 mm	8 mm	50.5 mm
32PLP-12M-10M	12 mm	10 mm	50.5 mm
32PLP-12M-14M	12 mm	14 mm	56.0 mm
32PLP-12M-16M	16 mm	12 mm	61.0 mm
