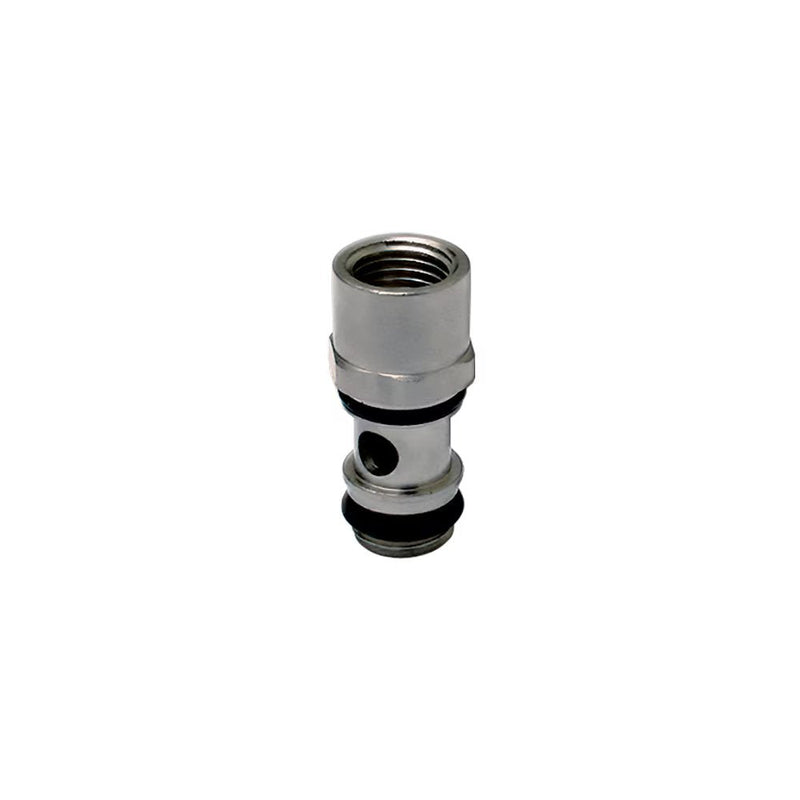

3300 04 00 by Parker | Legris Modular Plug-In Connectors | 4 mm Tube Size | 55 mm Length | Straight | Polymer

Save $17.45 Save $17.45
Original price $191.95
Original price $191.95 - Original price $191.95
Original price $191.95
Current price $174.50
$174.50 - $174.50
Current price $174.50

by Parker Hannifin
LF 3000 ® Push-In Fittings / Modular Plug-In Connectors:3300 Modular Plug-In Connector

Specifications for Variant SKU: 3300 04 00 Parker
Series: 3300 Series
Shape (Orientation): Straight
Material(s): Polymer, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 10 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • 3 types of solutions: in-line, panel-mounted or DIN rail connector
  • Minimized connection space
  • Prevents incorrect assembly
  • Customized multi-connectors upon request
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Panel-mounted: Zinc-Plated Steel, Technical Polymer
  • In-Line: Aluminum, Technical Polymer
  • DIN Rail: Technical Polymer
Part Number ØD B H H1 K K1 L L1 L2 N Kg
3300 04 00 4 mm 21 mm 40.5 mm 29.5 mm 32 mm 20 mm 55 mm 22 mm 6 mm 11 mm .079 Kg
3300 06 00 6 mm 28 mm 48 mm 38.5 mm 39 mm 27.5 mm 70 mm 28 mm 7.5 mm 14 mm .213 Kg
3300 08 00 8 mm 28 mm 50 mm 39 mm 39 mm 27.5 mm 70 mm 28 mm 7.5 mm 14 mm .125 Kg

Clearance hole for Ø3 mm screw
