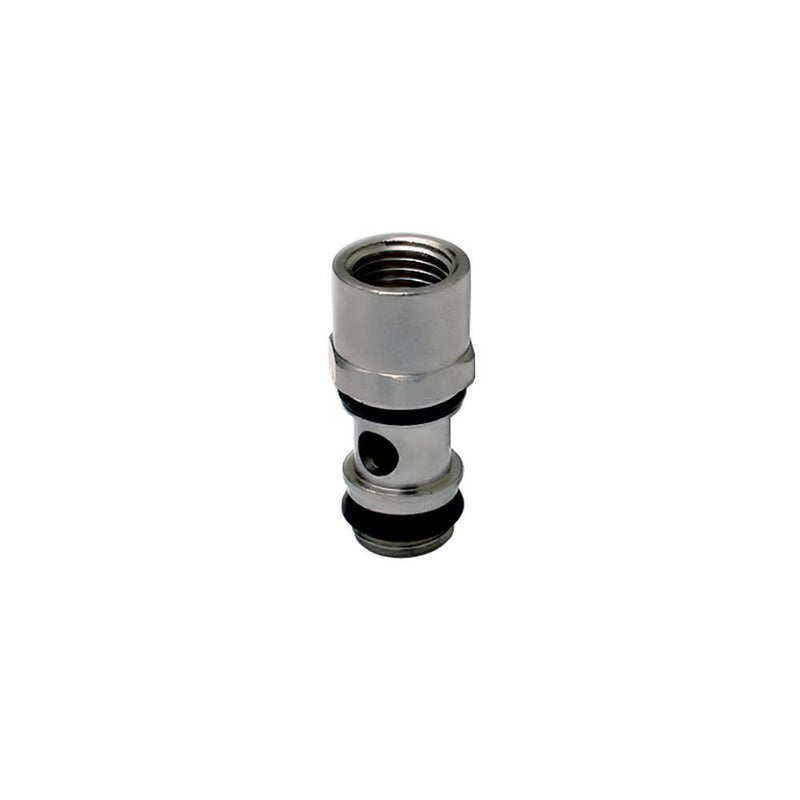

3300 08 00 by Parker | Legris Modular Plug-In Connectors | 8 mm Tube Size | 70 mm Length | Straight | Polymer

Save $22.58

$248.40

$248.40 - $248.40

$248.40

$225.82

$225.82 - $225.82

$225.82

by Parker Hannifin
LF 3000 ® Push-In Fittings / Modular Plug-In Connectors:3300 Modular Plug-In Connector

Quantity

Specifications for Variant SKU: 3300 08 00 Parker
Series:	3300 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 10 bar Working Temperature: -20°C to +80°C
Advantages:	3 types of solutions: in-line, panel-mounted or DIN rail connector Minimized connection space Prevents incorrect assembly Customized multi-connectors upon request
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Panel-mounted: Zinc-Plated Steel, Technical Polymer In-Line: Aluminum, Technical Polymer DIN Rail: Technical Polymer


Part Number	ØD	B	H	H1	K	K1	L	L1	L2	N	Kg
3300 04 00	4 mm	21 mm	40.5 mm	29.5 mm	32 mm	20 mm	55 mm	22 mm	6 mm	11 mm	.079 Kg
3300 06 00	6 mm	28 mm	48 mm	38.5 mm	39 mm	27.5 mm	70 mm	28 mm	7.5 mm	14 mm	.213 Kg
3300 08 00	8 mm	28 mm	50 mm	39 mm	39 mm	27.5 mm	70 mm	28 mm	7.5 mm	14 mm	.125 Kg

Clearance hole for Ø3 mm screw
