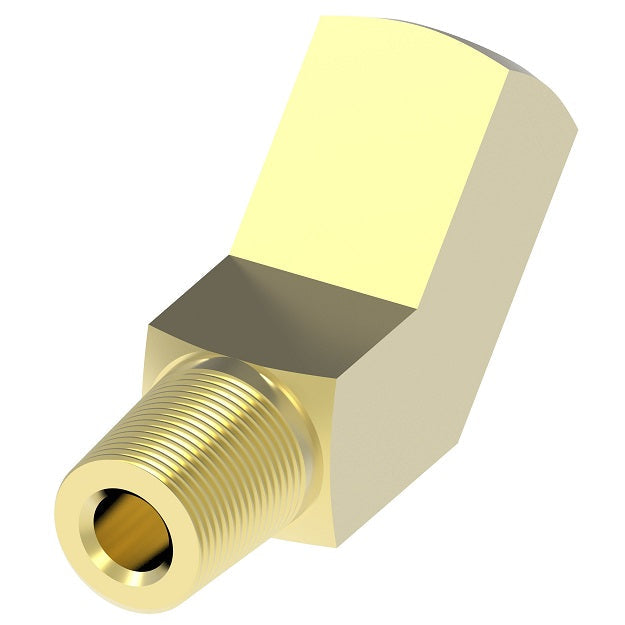

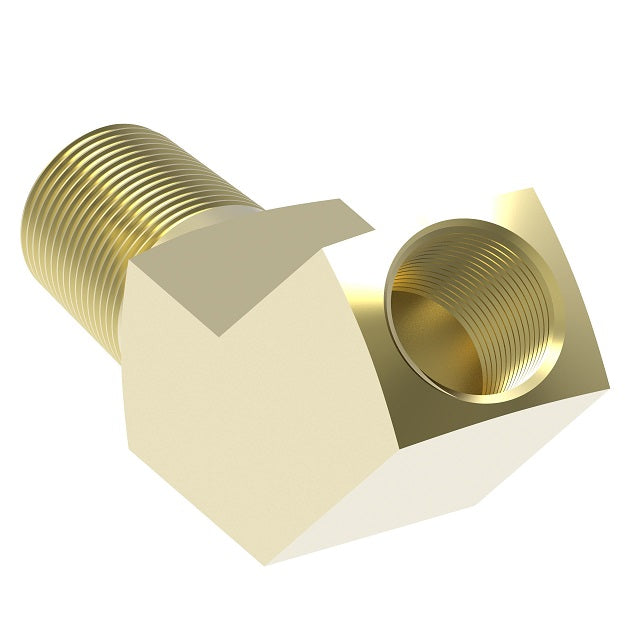

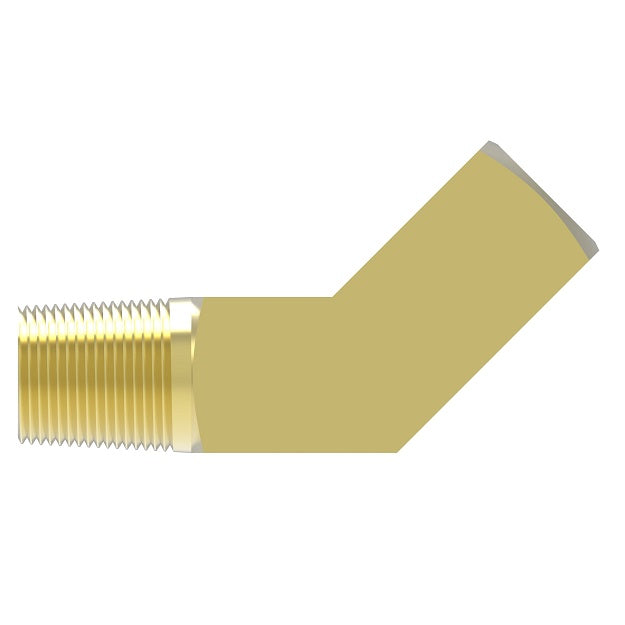

3350X6 by Danfoss | Pipe Adapter | 45° Street Elbow | 3/8" Male Pipe x 3/8" Female Pipe | Brass
3350X6 by Danfoss | Pipe Adapter | 45° Street Elbow | 3/8" Male Pipe x 3/8" Female Pipe | Brass
3350X6 by Danfoss | Pipe Adapter | 45° Street Elbow | 3/8" Male Pipe x 3/8" Female Pipe | Brass
3350X6 by Danfoss | Pipe Adapter | 45° Street Elbow | 3/8" Male Pipe x 3/8" Female Pipe | Brass

3350X6 by Danfoss | Pipe Adapter | 45° Street Elbow | 3/8" Male Pipe x 3/8" Female Pipe | Brass

$8.16 - $8.16
$8.16
$8.16 - $8.16
$8.16

Aeroquip® by Danfoss
Pipe Adapter - Street Elbow
Specifications for Variant SKU: 3350X6 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Male NPT, 3/8in Female NPT
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130339
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Male Pipe
Thread		 Female Pipe
Thread		 C D N N1
3350X2 3350X2Z 1/8" 1/8" 9/16" 0.219" 0.50" 0.38"
3350X4 3350X4Z 1/4" 1/4" 11/16" 0.312" 0.74" 0.56"
3350X6 3350X6Z 3/8" 3/8" 13/16" 0.438" 0.78" 0.56"
3350X8 - 1/2" 1/2" 1" 0.562" 1.00" 0.75"
3350X12 - 3/4" 3/4" 1-1/4" 0.750" 1.06" 0.75"
