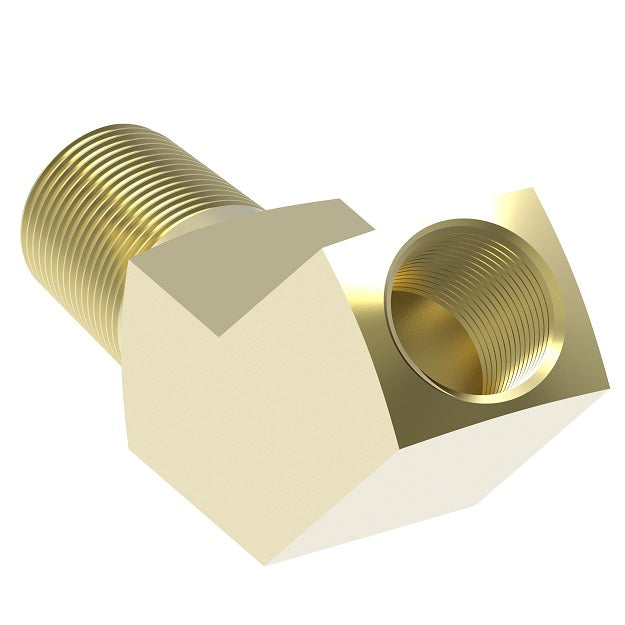

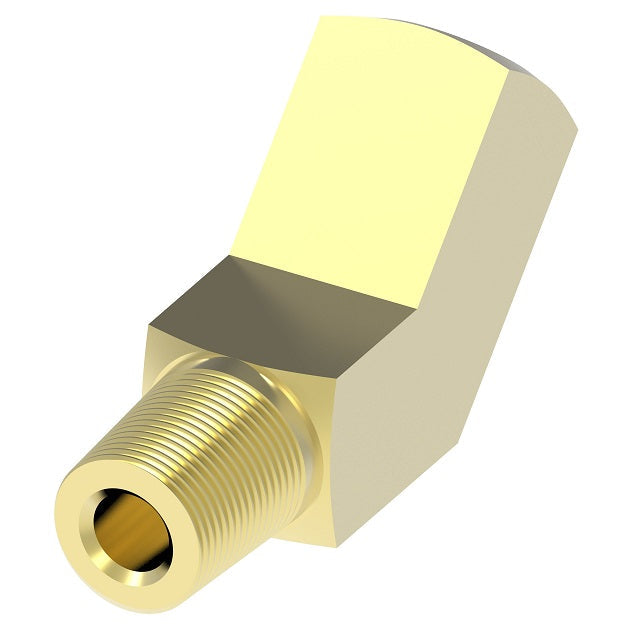

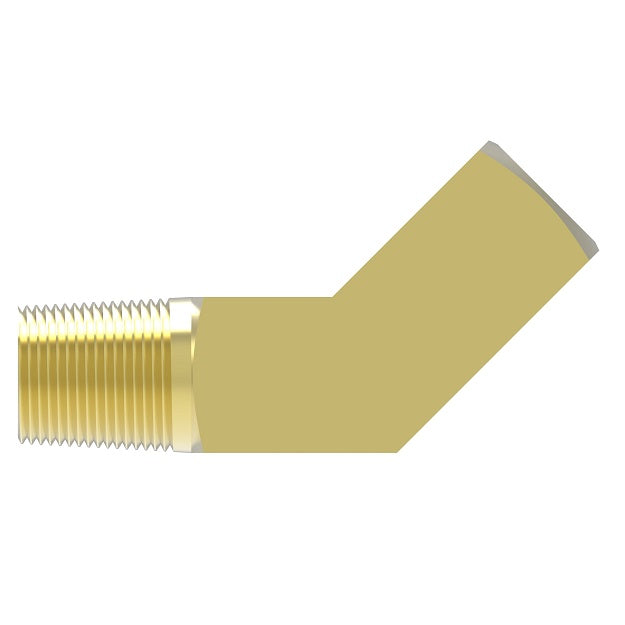

3350X6Z by Danfoss | Pipe Adapter | 45° Street Elbow (with Sealant) | 3/8" Male Pipe x 3/8" Female Pipe | Brass
3350X6Z by Danfoss | Pipe Adapter | 45° Street Elbow (with Sealant) | 3/8" Male Pipe x 3/8" Female Pipe | Brass
3350X6Z by Danfoss | Pipe Adapter | 45° Street Elbow (with Sealant) | 3/8" Male Pipe x 3/8" Female Pipe | Brass
3350X6Z by Danfoss | Pipe Adapter | 45° Street Elbow (with Sealant) | 3/8" Male Pipe x 3/8" Female Pipe | Brass

3350X6Z by Danfoss | Pipe Adapter | 45° Street Elbow (with Sealant) | 3/8" Male Pipe x 3/8" Female Pipe | Brass

$9.23 - $9.23
$9.23
$9.23 - $9.23
$9.23

Aeroquip® by Danfoss
Pipe Adapter - Street Elbow
Specifications for Variant SKU: 3350X6Z Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Male NPT, 3/8in Female NPT
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130339
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Male Pipe
Thread		 Female Pipe
Thread		 C D N N1
3350X2 3350X2Z 1/8" 1/8" 9/16" 0.219" 0.50" 0.38"
3350X4 3350X4Z 1/4" 1/4" 11/16" 0.312" 0.74" 0.56"
3350X6 3350X6Z 3/8" 3/8" 13/16" 0.438" 0.78" 0.56"
3350X8 - 1/2" 1/2" 1" 0.562" 1.00" 0.75"
3350X12 - 3/4" 3/4" 1-1/4" 0.750" 1.06" 0.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
