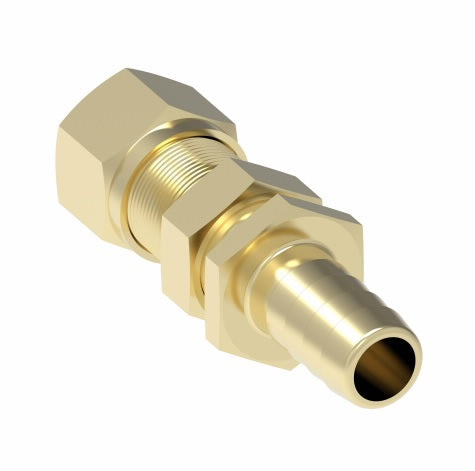

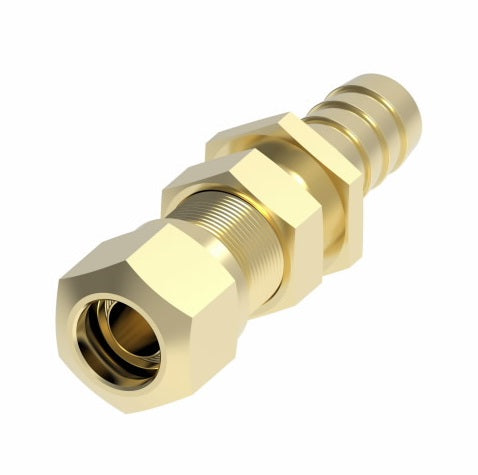

33806P-Y68 Weatherhead by Danfoss | 338 'P' Series | Air Brake Slider Line Crimp Fitting | -08 Air Brake End x -06 Hose Barb | Brass
33806P-Y68 Weatherhead by Danfoss | 338 'P' Series | Air Brake Slider Line Crimp Fitting | -08 Air Brake End x -06 Hose Barb | Brass
33806P-Y68 Weatherhead by Danfoss | 338 'P' Series | Air Brake Slider Line Crimp Fitting | -08 Air Brake End x -06 Hose Barb | Brass
33806P-Y68 Weatherhead by Danfoss | 338 'P' Series | Air Brake Slider Line Crimp Fitting | -08 Air Brake End x -06 Hose Barb | Brass

33806P-Y68 Weatherhead by Danfoss | 338 'P' Series | Air Brake Slider Line Crimp Fitting | -08 Air Brake End x -06 Hose Barb | Brass

$30.90 - $30.90
$30.90
$30.90 - $30.90
$30.90

Weatherhead by Danfoss
Coll-O-Crimp 338 'P' Series Crimp Fitting - Air Brake Slider Line - Straight
Specifications for Variant SKU: 33806P-Y68 Danfoss
Brand: Weatherhead
Series: 338 'P' Series
Shape (Orientation): Straight
Material(s): Brass
Compatible with the following Series: EC038 Series
Applications:
  • Air brake hose lines.
Advantages:
  • A permanent hose end saves time and is easy to assemble.
  • Brass material offers excellent resistance against corrosion.
Pressure:
  • Determined by hose burst pressure.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Componentry
1. Brass collar
2. Brass insert. Male pipe or brass swivel insert with brass SAE nut.
3. Brass A.B.S. insert with steel A.B.S. swivel nut.
Brass
Part Number		 Hose
I.D.		 Tube
Size		 Thread
Size		 A Hose
Cut-Off
Factor		 Hole
Diameter		 Hex
E		 Hex
F
33806P-Y66 3/8" 3/8" 17/32-24 2.41" 1.00" 0.28" 1-1/16" 1-1/8"
33806P-Y68 3/8" 1/2" 11/16-20 2.51" 1.00" 0.28" 1-1/16" 1-1/8"
33808P-Y68 1/2" 1/2" 11/16-20 2.69" 1.28" 0.41" 7/8" 13/16"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
