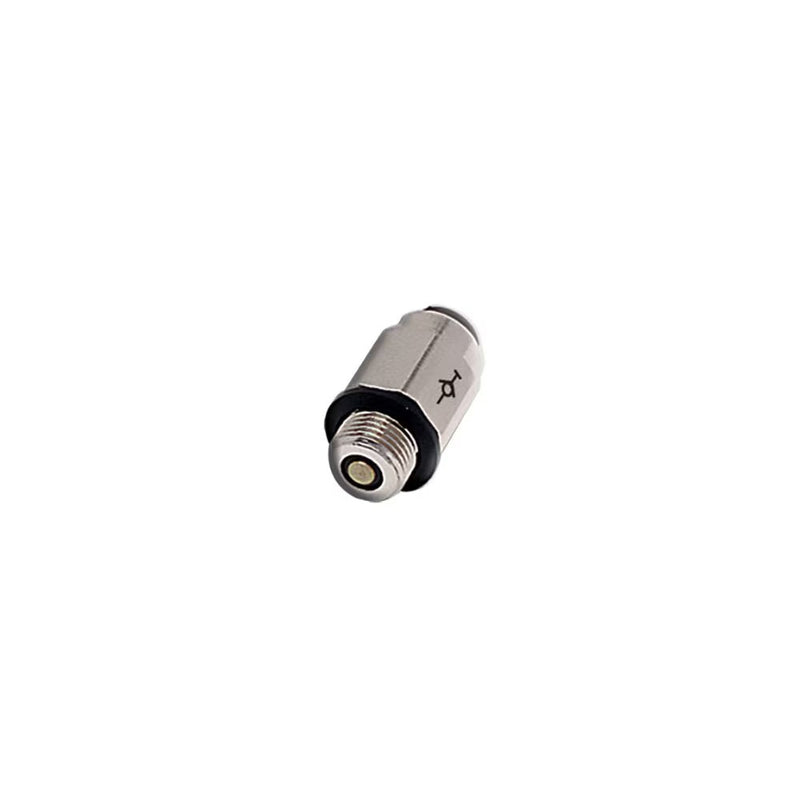

3391 10 17 by Parker | Legris Self-Sealing Stud Fitting | 10 mm Tube Size x 3/8" Male BSPP Thread | Straight | Nickel-Plated Brass | Pack of 10

Save $15.41

$169.48

$169.48 - $169.48

$169.48

$154.07

$154.07 - $154.07

$154.07

by Parker Hannifin
LF 3000 ® Push-In Fittings / Self-Sealing and Oscillating Fittings:3391 Self-Sealing Stud Fitting, Male BSPP Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3391 10 17 Parker \| 10 \|
Series:	3391 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 10 bar (10 bar: self-sealing fitting) Working Temperature: -20°C to +80°C
Advantages:	Self-Sealing Fittings Prevents fluid flow when there is no tube connected Prevents incorrect assembly Oscillating Fittings Fitting swivels when cylinder is in movement : no bending of the tube High durability fitting/tube assembly
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Body: Self-sealing fitting: nickel-plated brass Oscillating fitting: Technical Polymer Adaptor: Nickel-Plated Brass Anti-friction bearings LF 3000® Components


Part Number	ØD	C	E	F	H	H1	H2	ØT	Kg
3391 04 10	4 mm	1/8"	5 mm	13 mm	18 mm	7.5 mm	6 mm	5 mm	.017 Kg
3391 06 10	6 mm	1/8"	5 mm	14 mm	19.5 mm	9 mm	6 mm	7.5 mm	.018 Kg
3391 08 10	8 mm	1/8"	5 mm	14 mm	29.5 mm	10 mm	6 mm	7.5 mm	.025 Kg
3391 08 13	8 mm	1/4"	5.5 mm	16 mm	25.5 mm	11 mm	8 mm	9 mm	.032 Kg
3391 10 17	10 mm	3/8"	5.5 mm	20 mm	27.5 mm	13 mm	11 mm	10 mm	.055 Kg

Maximum working pressure: 10 bar

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
