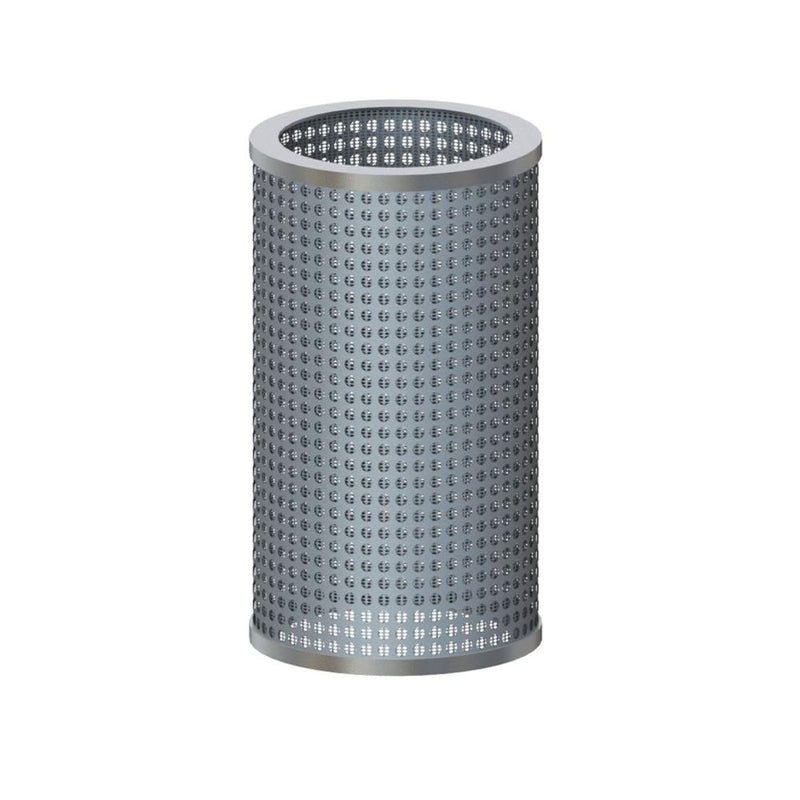

3410100 (10STR-5) by PT-Coupling | Y-Strainer Basket | 100 Mesh | for 1" Strainers | 304 Stainless Steel

3410100 (10STR-5) by PT-Coupling | Y-Strainer Basket | 100 Mesh | for 1" Strainers | 304 Stainless Steel

Save $26.78 Save $26.78
$72.15
$72.15 - $72.15
$72.15
$45.37
$45.37 - $45.37
$45.37

PT Coupling
Petroleum Handling | Y-Strainer Basket | 100 Mesh | for Y-Strainers
Specifications for Variant SKU: 3410100 PT-Coupling
Material(s): 304 Stainless Steel
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Strainer Baskets must be ordered separately from Strainers.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
For use with:
  • STR-Y Polypropylene Strainers.
  • STR-Y Aluminum, Stainless Steel, & Ductile Iron Strainers.
Part
Name		 Strainer Size 14 Mesh 20 Mesh 40 Mesh 60 Mesh 80 Mesh 100 Mesh
10STR-5 1" 3410014 - 3410040 - - 3410100
15STR-5 1-1/2" - - 3415040 - - -
20STR-5 2" 3420014 3420020 3420040 - 3420080 3420100
30STR-5 3" 3430014 3430020 3430040 3430060 3430080 -
40STR-5 4" 3440014 3440020 3440040 - - -
