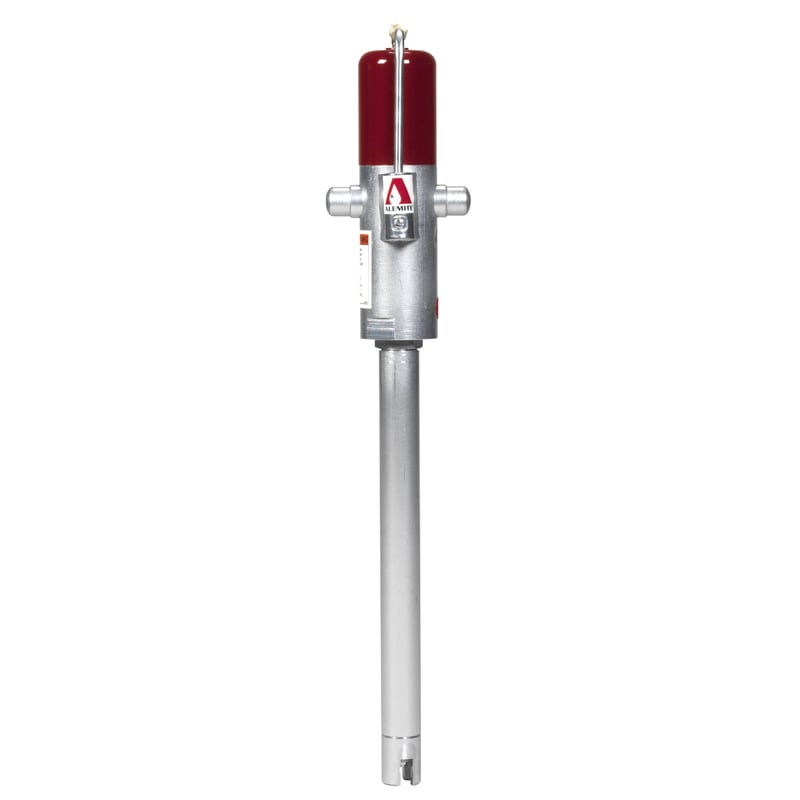

343085 by Alemite | Grease Pump | Pneumatic Standard Duty - Stationary | Material Outlet: 3/8" Female NPTF | Container Size: 400Lb

343085 by Alemite | Grease Pump | Pneumatic Standard Duty - Stationary | Material Outlet: 3/8" Female NPTF | Container Size: 400Lb

Save $20.18 Save $20.18
$1,891.92
$1,891.92 - $1,891.92
$1,891.92
$1,871.74
$1,871.74 - $1,871.74
$1,871.74

PRODUCT DESCRIPTION

Alemite Grease Pumps - Pneumatic Standard Duty - Stationary
Specifications for Variant SKU: 343085 Alemite
Applications:
  • Alemite Grease pumps are designed to handle a wide range of applications, fluid viscosities and system pressures. Combined with Alemite Hose Reels, Dispensing Valves and Meters,Alemite Grease Pumps deliver lubricant from tanks, drums, totes and pails.
Features:
  • Alemite H Pumps are designed for intermittent use in medium or high pressure industrial applications. Double acting H Pumps handle lightweight and fibrous lubricants.3" diameter air motor
  • Dynamic primer - ensures efficient handling of light to heavy multi-purpose greases
  • 2-7/16 (50:1) - 3" (70:1) diameter air motor
  • Double toggle air valve trip mechanism prevents binding or stalling
  • Corrosion resistant chrome finish on piston rods reduces packing wear
  • Center flow, micro-lapped high pressure air valve provides very long life
  • Flexible follower for straight or tapered containers
  • Self aligning, heavy acme threads provide safely locked linkage
  • Recommended for moderate length pipe installations
  • 1/4" air inlet
  • Delivery in table based on NLGI #2 at 77° F, 150 psi
    • INCLUDED ITEMS (8540 SERIES):
    • Pressurtrol (319800-1), to limit air supply to the pump when pressures reach designated level (factory set at 7,500 psi)
    • - Models 8549-B1 and 8559-B include Air Connector, Quick Detach Air Coupler and Bung Adapter
    • 343084 PACKAGE INCLUDES:
    • 120 lb. Drum Dolly (316315-5)

Part Number Material Outlet Pump Ratio Delivery Follower Container size Cover Bare Pump Weight
8549-C 3/8" NPTF(f) 70:1 1.8 Lb./minute 338911 400 Lb. 318040-4 331378-B1 35 Lb.
8549-B1 3/8" NPTF(f) 70:1 1.8 Lb./minute 338911 400 Lb. 318040-4 331378-B1 35 Lb.
8540-B 3/8" NPTF(f) 70:1 1.8 Lb./minute 338802 120 Lb. 338371 331378-A1 32 Lb.
8540-A1 3/8" NPTF(f) 70:1 1.8 Lb./minute 338802 (included) 120 Lb. 338371 (included) 331378-A1 35 Lb.
331378-E1 3/8" NPTF(f) 70:1 1.8 Lb./minute 338991 12.5 Kg 338981 NA 13.2 Kg.
331378-F1 3/8" NPTF(f) 70:1 1.8 Lb./minute 338991 12.5 Kg 338981 NA 13.6 Kg.
331378-H1 3/8" NPTF(f) 70:1 1.8 Lb./minute 338992 20 Kg 338982 NA 14.1 Kg.
8559-B 3/8" NPTF(f) 50:1 2.5 Lb./minute 338911 400 Lb. 318040-4 331380-B5 35 Lb.
8550-A1 3/8" NPTF(f) 50:1 2.5 Lb./minute 338802 (included) 120 Lb. 338371 (included) 331380-A5 35 Lb.
331380-E1 3/8" NPTF(f) 50:1 2.5 Lb./minute 338991 12.5 Kg 338981 N/A 13.6 Kg.
331380-M1 3/8" NPTF(f) 50:1 2.5 Lb./minute 338992 20 Kg 338982 N/A 14.1 Kg.
343084 3/8" NPTF(f) 50:1 2.5 Lb./minute 338802 (included) 120 Lb. 338371 331380-A5 54 Lb.
343085 3/8" NPTF(f) 50:1 2.5 Lb./minute 338911 (included) 400 Lb. 318040-4 331380-B5 48 Lb.
