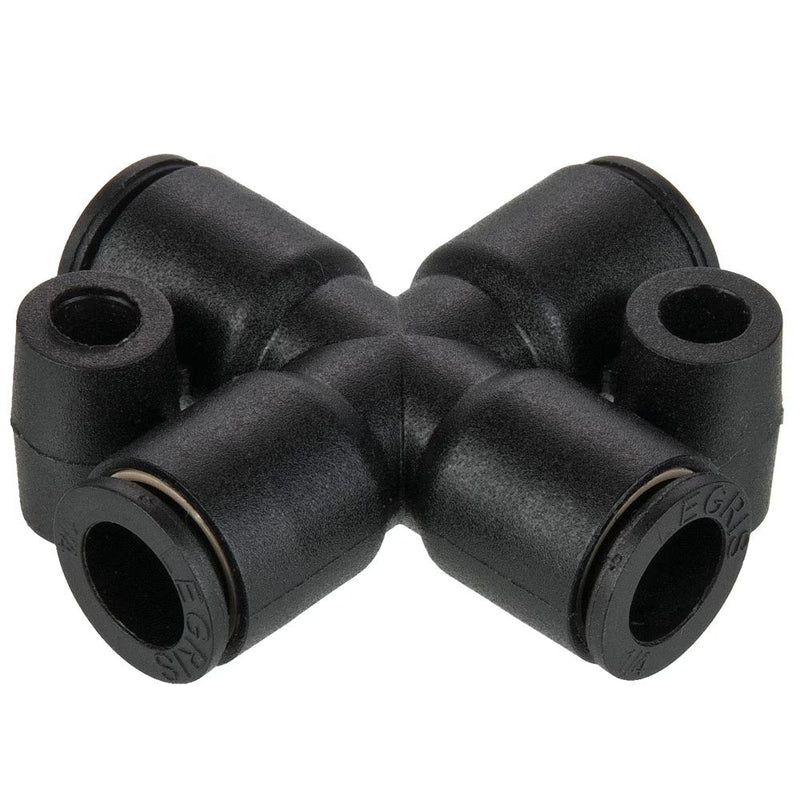

347PLP-8M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 8mm Equal Tube Size | 22.5mm Length (L) | 4.2mm Mounting Hole Diameter | Cross | Glass-Reinforced Nylon | Pack of 10

347PLP-8M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 8mm Equal Tube Size | 22.5mm Length (L) | 4.2mm Mounting Hole Diameter | Cross | Glass-Reinforced Nylon | Pack of 10

Save $49.87 Save $49.87
$124.67
$124.67 - $124.67
$124.67
$74.80
$74.80 - $74.80
$74.80

by Parker Hannifin
Push-to-Connect Fittings:347PLP Equal Cross

Package Quantity: 10 Units

Specifications for Variant SKU: 347PLP-8M Parker | 10 |
Series: 347PLP Series
Shape (Orientation): Cross
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size H L Mounting Hole Diameter
347PLP-4M 4 mm 36 mm 20.0 mm 4.2 mm
347PLP-6M 6 mm 36 mm 20.0 mm 4.2 mm
347PLP-8M 8 mm 46 mm 22.5 mm 4.2 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
