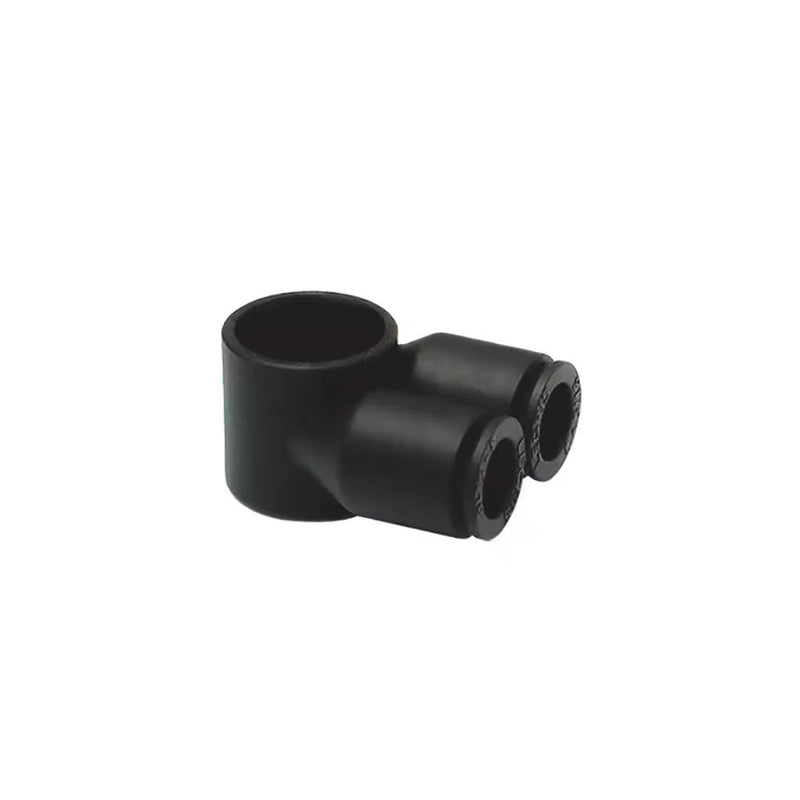

3549 04 13 by Parker | Legris Twin Banjo Body | 4mm Tube Size x 1/4" Male Thread | Twin Banjo | Polymer | Pack of 10

Save $14.76

$105.03

$105.03 - $105.03

$105.03

$90.27

$90.27 - $90.27

$90.27

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3549 Twin Banjo Bodies

Package Quantity: 10 Units

Specifications for Variant SKU: 3549 04 13 Parker \| 10 \|
Series:	3549 Series
Material(s):	Polymer
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	G	K	L	N	Kg
3549 04 13	4 mm	1/4"	18.5 mm	28 mm	25 mm	14.5 mm	.020 Kg
3549 06 10	6 mm	1/8"	14 mm	22.5 mm	20.5 mm	12 mm	.003 Kg
3549 06 13	6 mm	1/4"	18.5 mm	28 mm	25 mm	14.5 mm	.015 Kg
3549 06 17	6 mm	3/8"	22.5 mm	33 mm	28.5 mm	17 mm	.031 Kg
3549 08 13	8 mm	1/4"	18.5 mm	28 mm	26 mm	14.5 mm	.006 Kg
3549 08 17	8 mm	3/8"	22.5 mm	33 mm	29.5 mm	17 mm	.020 Kg
