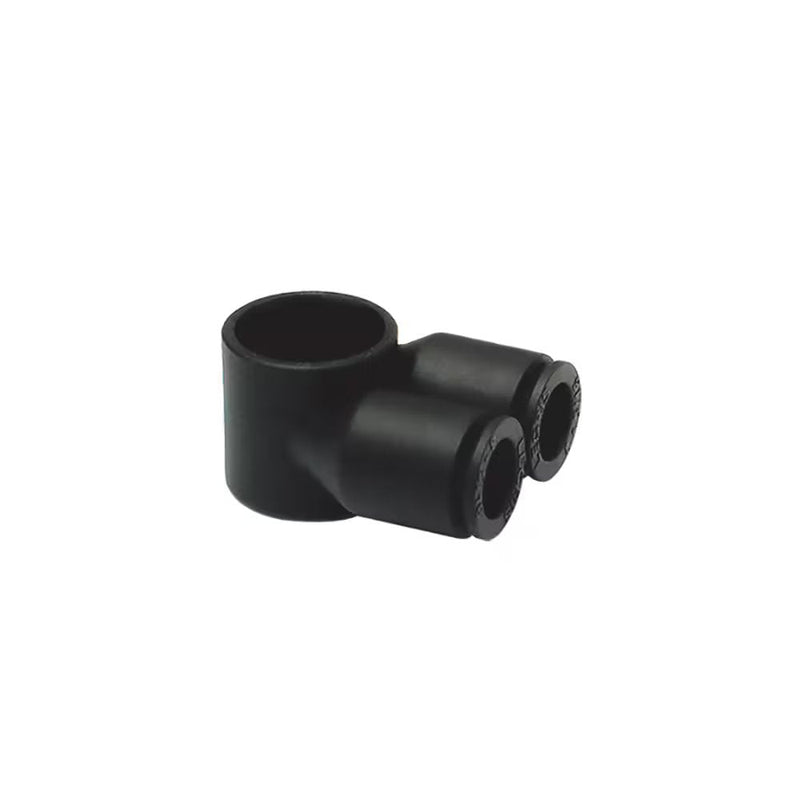

3549 08 13 by Parker | Legris Twin Banjo Body | 8mm Tube Size x 1/4" Male Thread | Twin Banjo | Polymer | Pack of 10

Save $62.14

$155.35

$155.35 - $155.35

$155.35

$93.21

$93.21 - $93.21

$93.21

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3549 Twin Banjo Bodies

Package Quantity: 10 Units

Specifications for Variant SKU: 3549 08 13 Parker \| 10 \|
Series:	3549 Series
Material(s):	Polymer
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	G	K	L	N	Kg
3549 04 13	4 mm	1/4"	18.5 mm	28 mm	25 mm	14.5 mm	.020 Kg
3549 06 10	6 mm	1/8"	14 mm	22.5 mm	20.5 mm	12 mm	.003 Kg
3549 06 13	6 mm	1/4"	18.5 mm	28 mm	25 mm	14.5 mm	.015 Kg
3549 06 17	6 mm	3/8"	22.5 mm	33 mm	28.5 mm	17 mm	.031 Kg
3549 08 13	8 mm	1/4"	18.5 mm	28 mm	26 mm	14.5 mm	.006 Kg
3549 08 17	8 mm	3/8"	22.5 mm	33 mm	29.5 mm	17 mm	.020 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
