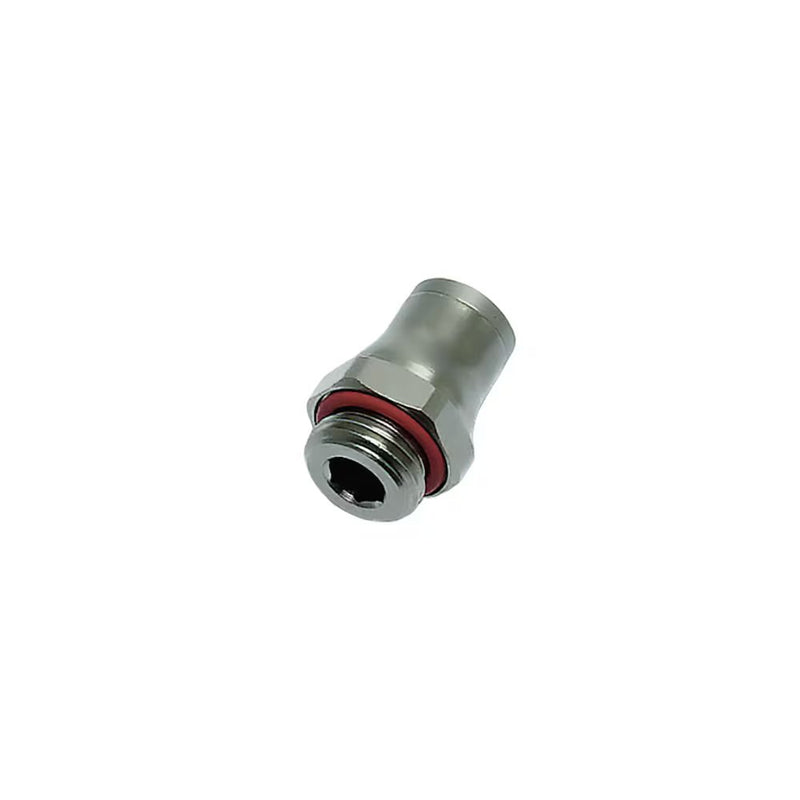

3601 56 20 by Parker | Legris Threaded Fitting | 1/4" Push-to-Connect x 10-32 Male UNF Thread | 13 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

3601 56 20 by Parker | Legris Threaded Fitting | 1/4" Push-to-Connect x 10-32 Male UNF Thread | 13 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $38.67 Save $38.67
$96.68
$96.68 - $96.68
$96.68
$58.01
$58.01 - $58.01
$58.01

by Parker Hannifin
LF3600 Metal Push-to-Connect Fittings:3601 - male connector tube to UNF, BSPP or metric

Package Quantity: 10 Units

Specifications for Variant SKU: 3601 56 20 Parker | 10 |
Brand: LF 3000®
Series: 3601 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Automation
  • Food Processing
Applications:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
Pressure Range
  • Up to 435 psi (30 bar)
Temperature Range
  • -4° to 302° F (-20° to 150° C)
Vacuum Capability
  • 28" Hg
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Semi-Rigid Nylon
  • Fluoropolymer
  • Stainless Steel (when grooved)
  • Copper (when grooved)
Note:
  • Maximum working pressure and temperature are dependent on the type of tubing used
  • Units with thread sealant do not meet FDA Compliance
Part Number ØD UNF / BSPP (C) F1 F2 H K Oz
3601 04 20 5/32" 10-32 10 mm 2.5 mm .61" .43" .21 Oz
3601 56 20 1/4" 10-32 13 mm 2.5 mm .75" .55" .35 Oz
3601 56 10 1/4" 1/8" 13 mm 5 mm .768" .55" .38 Oz
