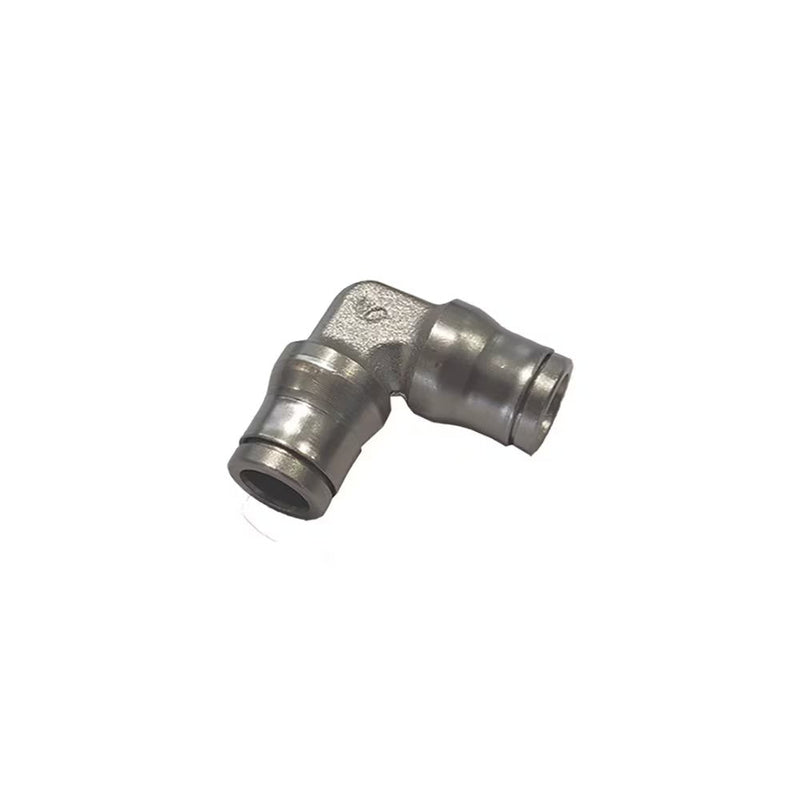

3602 12 00 by Parker | Legris Tube-to-Tube Fitting | 12 mm Tube Size | 40.5 mm Length | 90° Elbow | Nickel-Plated Brass

3602 12 00 by Parker | Legris Tube-to-Tube Fitting | 12 mm Tube Size | 40.5 mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $60.91 Save $60.91
$152.28
$152.28 - $152.28
$152.28
$91.37
$91.37 - $91.37
$91.37

by Parker Hannifin
LF 3000® Push-In Fittings / Tube-to-Tube Fittings :3602 Equal Elbow

Package Quantity: 5 Units

Specifications for Variant SKU: 3602 12 00 Parker | 5 |
Series: 3602 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD G L Kg
3602 04 00 4 mm 10 mm 23 mm .010 Kg
3602 06 00 6 mm 12 mm 28 mm .016 Kg
3602 08 00 8 mm 15 mm 31 mm .022 Kg
3602 10 00 10 mm 17.5 mm 37.5 mm .033 Kg
3602 12 00 12 mm 19.5 mm 40.5 mm .045 Kg
3602 14 00 14 mm 21.5 mm 45 mm .056 Kg
