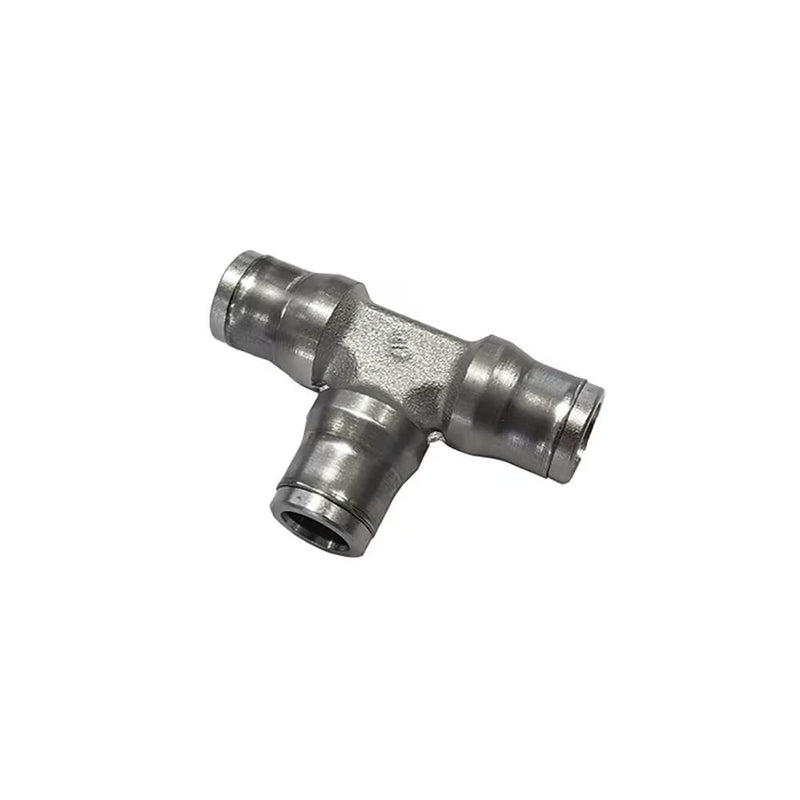

3604 08 00 by Parker | Legris Tube-to-Tube Fitting | 8 mm Tube Size | 47 mm Length | Tee | Nickel-Plated Brass

3604 08 00 by Parker | Legris Tube-to-Tube Fitting | 8 mm Tube Size | 47 mm Length | Tee | Nickel-Plated Brass | Pack of 10

Save $82.38 Save $82.38
$205.95
$205.95 - $205.95
$205.95
$123.57
$123.57 - $123.57
$123.57

by Parker Hannifin
LF 3000® Push-In Fittings / Tube-to-Tube Fittings :3604 Equal Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 3604 08 00 Parker | 10 |
Series: 3604 Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD G H L/2 Kg
3604 04 00 4 mm 10 mm 23 mm 18 mm .014 Kg
3604 06 00 6 mm 12 mm 28 mm 21.5 mm .023 Kg
3604 08 00 8 mm 15 mm 31 mm 23.5 mm .032 Kg
3604 10 00 10 mm 17.5 mm 37.5 mm 29 mm .048 Kg
3604 12 00 12 mm 19.5 mm 40.5 mm 31 mm .063 Kg
3604 14 00 14 mm 21.5 mm 45 mm 34 mm .078 Kg
