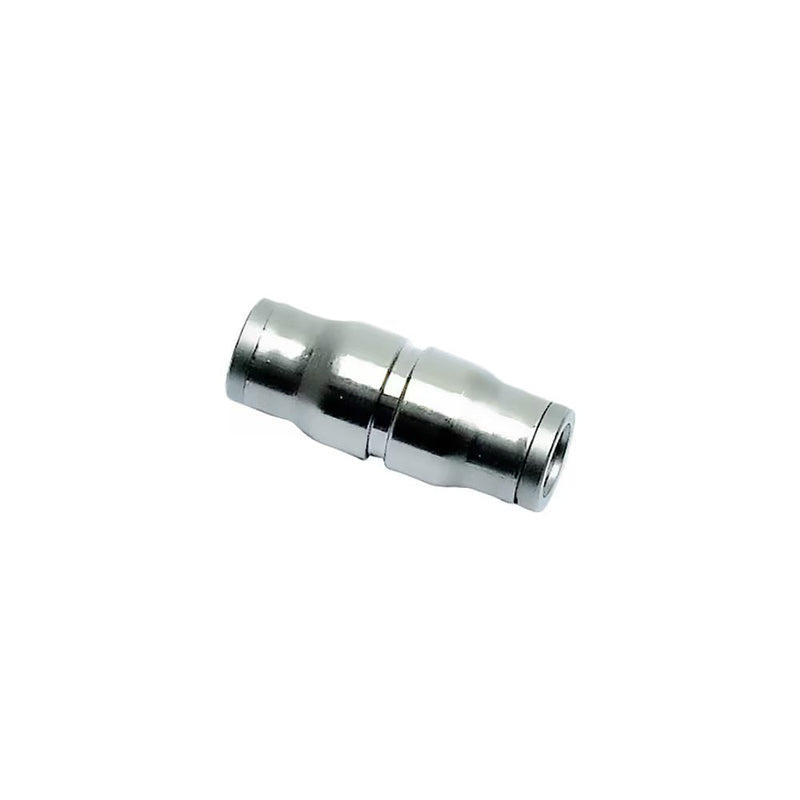

3606 10 00 by Parker | Legris Tube-to-Tube Fitting | 10 mm Tube Size | 47.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $96.90

$242.25

$242.25 - $242.25

$242.25

$145.35

$145.35 - $145.35

$145.35

by Parker Hannifin
LF 3000® Push-In Fittings / Tube-to-Tube Fittings :3606 Equal Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 3606 10 00 Parker \| 10 \|
Series:	3606 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	G	L	Kg
3606 04 00	4 mm	10 mm	30.5 mm	.010 Kg
3606 06 00	6 mm	12 mm	36.5 mm	.016 Kg
3606 08 00	8 mm	15 mm	37.5 mm	.021 Kg
3606 10 00	10 mm	17.5 mm	47.5 mm	.034 Kg
3606 12 00	12 mm	19.5 mm	50 mm	.042 Kg
3606 14 00	14 mm	21.5 mm	52.5 mm	.050 Kg
