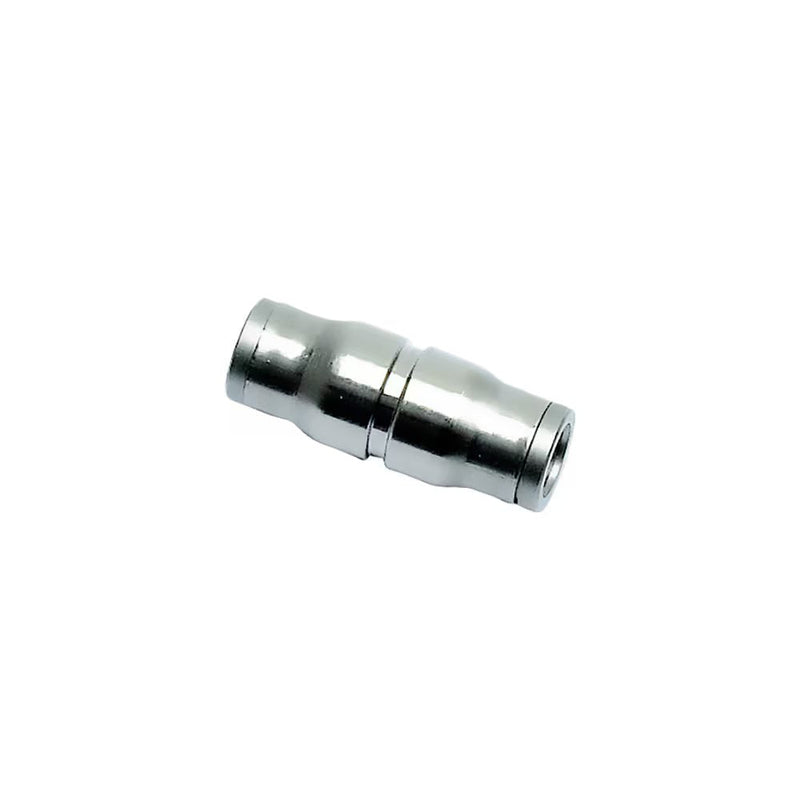

3606 14 00 by Parker | Legris Tube-to-Tube Fitting | 14 mm Tube Size | 52.5 mm Length | Straight | Nickel-Plated Brass

3606 14 00 by Parker | Legris Tube-to-Tube Fitting | 14 mm Tube Size | 52.5 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $21.67 Save $21.67
$170.00
$170.00 - $170.00
$170.00
$148.33
$148.33 - $148.33
$148.33

by Parker Hannifin
LF 3000® Push-In Fittings / Tube-to-Tube Fittings :3606 Equal Tube-to-Tube Connector

Package Quantity: 5 Units

Specifications for Variant SKU: 3606 14 00 Parker | 5 |
Series: 3606 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD G L Kg
3606 04 00 4 mm 10 mm 30.5 mm .010 Kg
3606 06 00 6 mm 12 mm 36.5 mm .016 Kg
3606 08 00 8 mm 15 mm 37.5 mm .021 Kg
3606 10 00 10 mm 17.5 mm 47.5 mm .034 Kg
3606 12 00 12 mm 19.5 mm 50 mm .042 Kg
3606 14 00 14 mm 21.5 mm 52.5 mm .050 Kg
