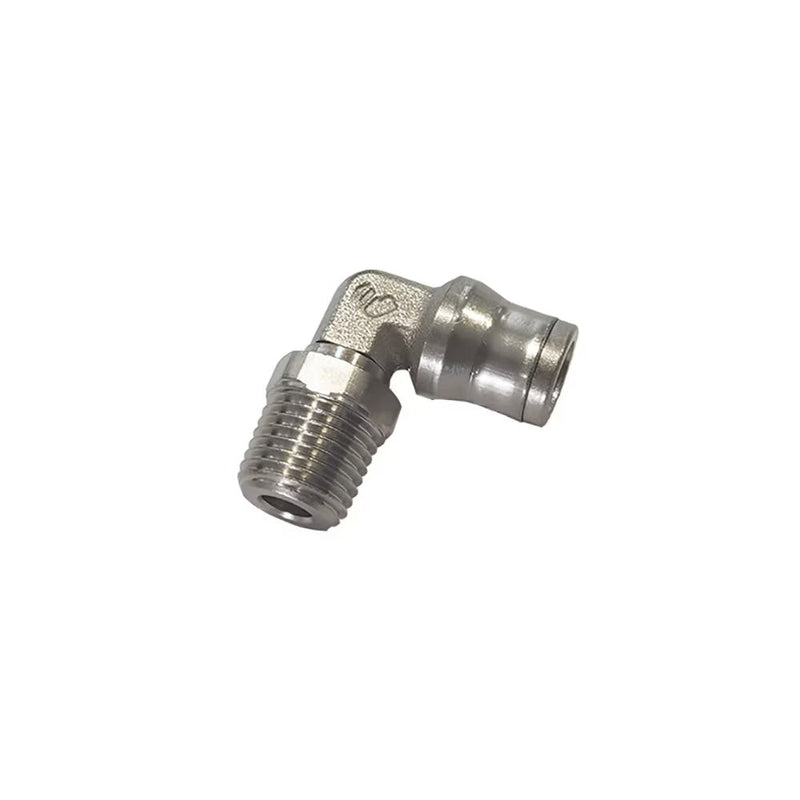

3609 04 10 by Parker | Legris Stud Swivel Fitting | 4 mm Tube Size x 1/8" Male BSPT Thread | 13 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $58.77

$146.92

$146.92 - $146.92

$146.92

$88.15

$88.15 - $88.15

$88.15

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3609 Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3609 04 10 Parker \| 10 \|
Series:	3609 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Swivel

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	F	G	H	J	L	Kg
3609 04 10	4 mm	1/8"	13 mm	10 mm	15 mm	7 mm	18 mm	.014 Kg
3609 04 13	4 mm	1/4"	14 mm	10 mm	17 mm	7 mm	18 mm	.020 Kg
3609 06 10	6 mm	1/8"	13 mm	12 mm	17.5 mm	8 mm	21.5 mm	.018 Kg
3609 06 13	6 mm	1/4"	14 mm	12 mm	19 mm	8 mm	21.5 mm	.025 Kg
3609 08 10	8 mm	1/8"	13 mm	15 mm	19.5 mm	10 mm	23.5 mm	.022 Kg
3609 08 13	8 mm	1/4"	14 mm	15 mm	21 mm	10 mm	23.5 mm	.029 Kg
3609 08 17	8 mm	3/8"	17 mm	15 mm	21 mm	10 mm	23.5 mm	.035 Kg
3609 10 13	10 mm	1/4"	15 mm	17.5 mm	23.5 mm	12 mm	29 mm	.037 Kg
3609 10 17	10 mm	3/8"	17 mm	17.5 mm	25.5 mm	12 mm	29 mm	.043 Kg
3609 12 13	12 mm	1/4"	15 mm	19.5 mm	26 mm	15 mm	31 mm	.049 Kg
3609 12 17	12 mm	3/8"	17 mm	19.5 mm	28.5 mm	15 mm	31 mm	.055 Kg
3609 12 21	12 mm	1/2"	21 mm	19.5 mm	28.5 mm	15 mm	31 mm	.072 Kg
3609 14 17	14 mm	3/8"	19 mm	21.5 mm	29 mm	16 mm	34 mm	.063 Kg
3609 14 21	14 mm	1/2"	22 mm	21.5 mm	30 mm	16 mm	34 mm	.072 Kg

The body swivels for positioning purposes. Maxi pressure = 20 bar

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
