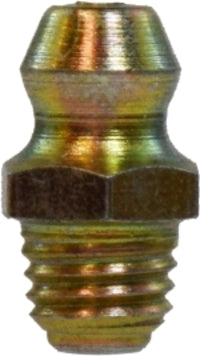

36141 (36-141) by Midland | Grease Fitting | Short Ball Check | 1/4"-28 Male NPTF Thread Forming | Straight | Steel

Save $0.21

$0.52

$0.52 - $0.52

$0.52

$0.31

$0.31 - $0.31

$0.31

Midland Industries
Brass Fitting - Grease Fitting - Short Ball Check

Inventory @ Manufacturers Warehouse: 125 Units

Specifications for Variant SKU: 36141 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF
Material(s):	Steel
Applicable Specs & Approvals:	SAE J-534C

SAE Rating:	Meets SAE #J-534C	Conformance:	Exceeds 12HR Salt
Pressure:	Max. 8000 PSI

Crossover Series:
#641	1641	2400	3038	5010


Part Number	Material	Size	A	B	Hex	Approx. Weight (Lbs.)
36140 (36-140)	Steel	1/4"-28 NPTF	0.54"	0.18"	0.31"	0.01
36140SS (36-140SS)	303 Stainless Steel	1/4"-28 NPTF	0.54"	0.18"	0.31"	0.01
36141 (36-141)	Steel, Thread Forming	1/4"-28 NPTF	0.55"	0.10"	0.31"	0.01

Dimension Data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
