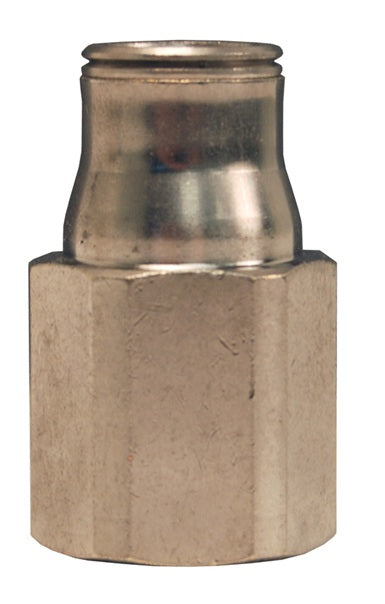

36155614 by Dixon Valve | Legris Push-In Fitting | Female Connector | 1/4" Tube OD x 1/4" Female NPT | Nickel-Plated Brass

36155614 by Dixon Valve | Legris Push-In Fitting | Female Connector | 1/4" Tube OD x 1/4" Female NPT | Nickel-Plated Brass

Save $15.94 Save $15.94
$39.85
$39.85 - $39.85
$39.85
$23.91
$23.91 - $23.91
$23.91

Dixon Valve & Coupling
Legris Push-In Fitting | Female Connector | Tube End x Female NPT

Push-to-connect forged fittings are nickel-plated and have an FKM seal making them suitable to use with compressed air, grease, lubricant, water

Applications include: food process, coffee machines, in-plant automotive, medical equipment, printing, misting, welding robots.
Specifications for Variant SKU: 36155614 Dixon
Brand: Legris
Series: 3615 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/4in Female NPT
Material(s): Nickel-Plated Brass
Features:
  • Fittings are plated with a high phosphorous FDA nickel plate allowing them to be used in applications where exposure to harsh environments is present.
  • Full flow
  • Excellent resistance to abrasion and corrosion
  • Silicone free
Construction:
  • Body: High phosphorous FDA nickel plated brass.
  • Back-up washer: High phosphorous FDA nickel plated brass.
  • Collet: High phosphorous FDA nickel plated brass.
  • O-ring: FKM fluoroelastomer conforming to FDA standards.
  • Base: High phosphorous FDA nickel plated brass.
Specifications:
  • Temperature range: -4°F to 302°F (-20°C to 150°C)
  • Pressure range: up to 435 PSI, 290 PSI: 3609, 3699 series
  • Vacuum capability: 28" HG maximum circuit pressure (depends on media, temperature and diameter of tube used)
Approvals:
  • FDA compliant.
Safety Notes:
  • Maximum circuit pressure depends on media, temperature and diameter of tube used
  • Thread sealant is intentionally left off product so the appropriate sealant for the application can be applied.
Part Number Tube O.D. Female NPT
36155611 1/4" 1/8"
36155614 1/4" 1/4"
36156014 3/8" 1/4"
36156018 3/8" 3/8"
36156218 1/2" 3/8"
36156222 1/2" 1/2"
