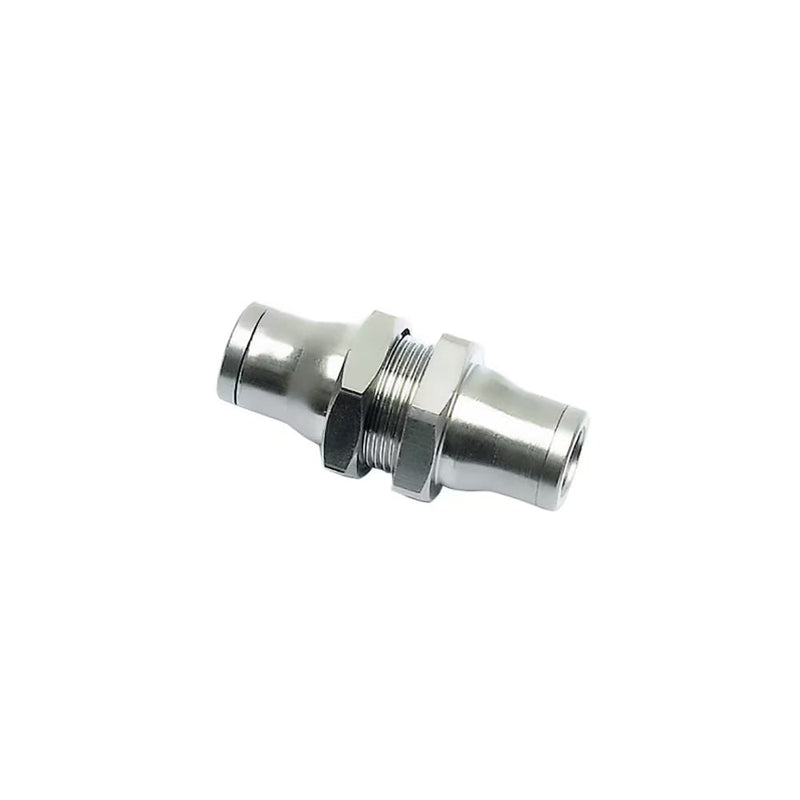

3616 12 00 by Parker | Legris Bulkhead Connector | 12 mm Tube Size | 52 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $16.81

$123.14

$123.14 - $123.14

$123.14

$106.33

$106.33 - $106.33

$106.33

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings :3616 Equal Bulkhead Connector

Package Quantity: 5 Units

Specifications for Variant SKU: 3616 12 00 Parker \| 5 \|
Series:	3616 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	F1	F2	K	L1	L2	ØT (Min)	Kg
3616 04 00	4 mm	13 mm	14 mm	14 mm	14 mm	20 mm	12.5 mm	.018 Kg
3616 06 00	6 mm	16 mm	17 mm	17.5 mm	17 mm	22 mm	15 mm	.028 Kg
3616 08 00	8 mm	18 mm	19 mm	19.5 mm	18.5 mm	23.5 mm	17 mm	.036 Kg
3616 10 00	10 mm	22 mm	27 mm	24 mm	21.5 mm	26.5 mm	21 mm	.063 Kg
3616 12 00	12 mm	24 mm	24 mm	26 mm	23 mm	27 mm	23 mm	.062 Kg
3616 14 00	14 mm	27 mm	27 mm	29.5 mm	25.5 mm	29.5 mm	25 mm	.079 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
