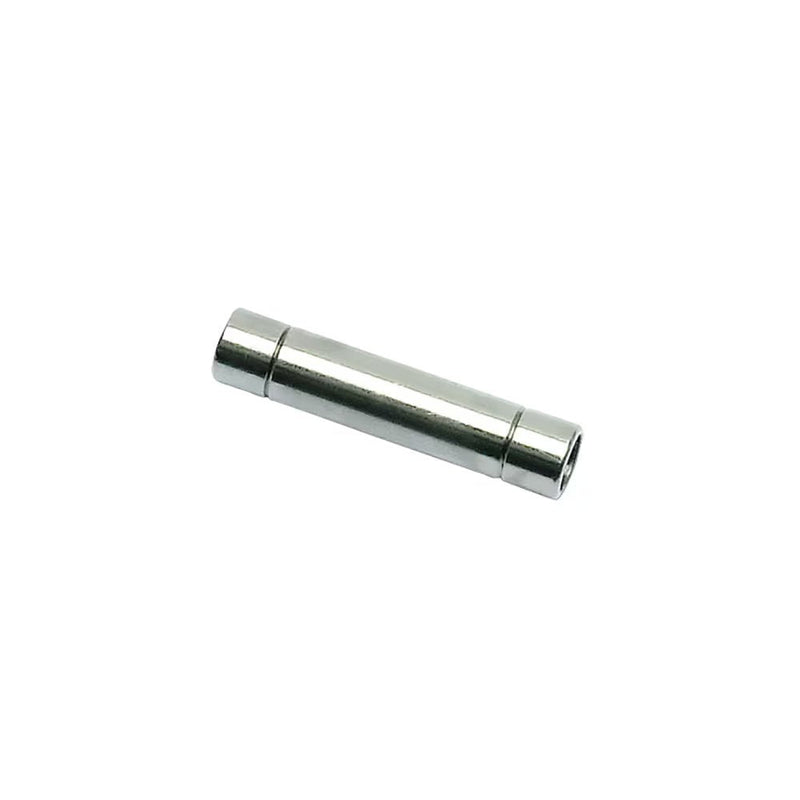

3620 04 00 by Parker | Legris Connector | 4mm Male Stem | 31mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $17.50

$43.75

$43.75 - $43.75

$43.75

$26.25

$26.25 - $26.25

$26.25

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Accessories :3620 Male Stem Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 3620 04 00 Parker \| 10 \|
Series:	3620 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	Kg
3620 04 00	4 mm	31 mm	14 mm	.002 Kg
3620 06 00	6 mm	36.5 mm	17 mm	.005 Kg
3620 08 00	8 mm	37.5 mm	17.5 mm	.005 Kg
3620 10 00	10 mm	47.5 mm	22.5 mm	.011 Kg
3620 12 00	12 mm	49.5 mm	23.5 mm	.015 Kg
3620 14 00	14 mm	53 mm	25 mm	.016 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
