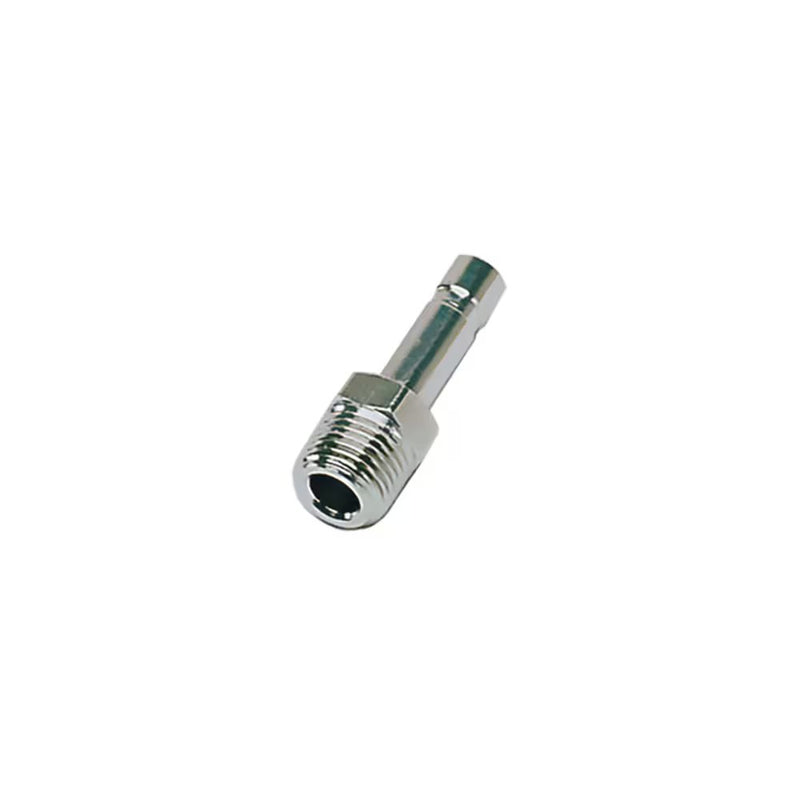

3621 06 10 by Parker | Legris Stud Standpipe | 6 mm Tube Size x 1/8" Male Standpipe BSPT Thread | 10 mm Hex | Straight | Nickel-Plated Brass

3621 06 10 by Parker | Legris Stud Standpipe | 6 mm Tube Size x 1/8" Male Standpipe BSPT Thread | 10 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $44.98 Save $44.98
$112.45
$112.45 - $112.45
$112.45
$67.47
$67.47 - $67.47
$67.47

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3621 Stud Standpipe, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3621 06 10 Parker | 10 |
Series: 3621 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C F H H1 Kg
3621 04 10 4 mm 1/8" 10 mm 21 mm 7 mm .006 Kg
3621 06 10 6 mm 1/8" 10 mm 23.5 mm 6.5 mm .008 Kg
3621 06 13 6 mm 1/4" 14 mm 23.5 mm 6.5 mm .016 Kg
3621 08 10 8 mm 1/8" 10 mm 24 mm 6.5 mm .009 Kg
3621 08 13 8 mm 1/4" 14 mm 21 mm 24 mm .017 Kg
3621 10 13 10 mm 1/4" 14 mm 22 mm 6.5 mm .018 Kg
3621 10 17 10 mm 3/8" 17 mm 30 mm 7.5 mm .022 Kg
3621 12 17 12 mm 3/8" 17 mm 31 mm 7.5 mm .041 Kg
3621 12 21 12 mm 1/2" 22 mm 31 mm 7.5 mm .041 Kg
3621 14 21 14 mm 1/2" 22 mm 33 mm 8 mm .042 Kg
