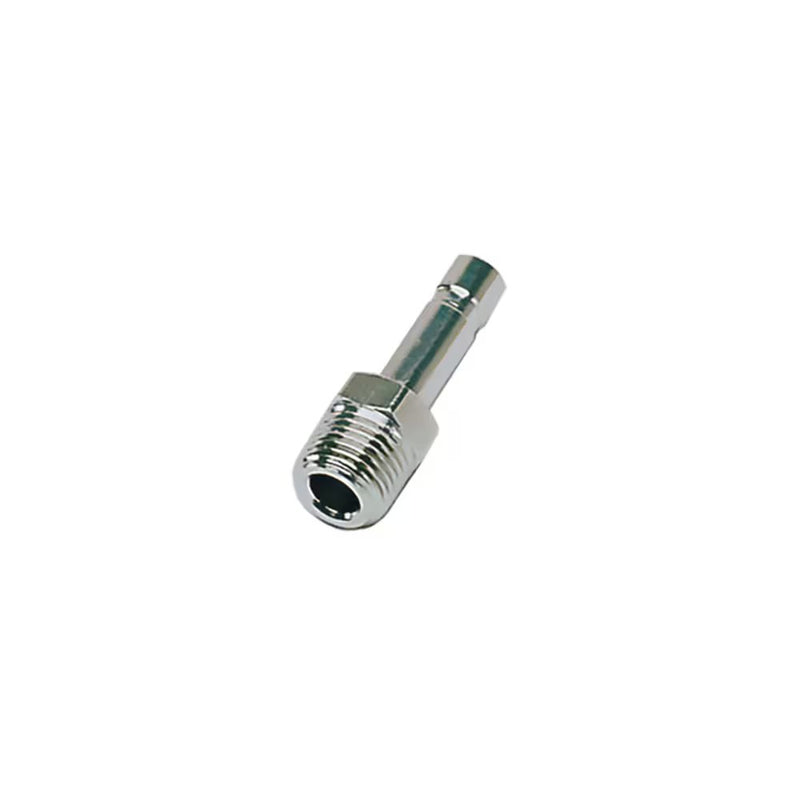

3621 06 13 by Parker | Legris Stud Standpipe | 6 mm Tube Size x 1/4" Male Standpipe BSPT Thread | 14 mm Hex | Straight | Nickel-Plated Brass

3621 06 13 by Parker | Legris Stud Standpipe | 6 mm Tube Size x 1/4" Male Standpipe BSPT Thread | 14 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $52.17 Save $52.17
$130.42
$130.42 - $130.42
$130.42
$78.25
$78.25 - $78.25
$78.25

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3621 Stud Standpipe, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3621 06 13 Parker | 10 |
Series: 3621 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C F H H1 Kg
3621 04 10 4 mm 1/8" 10 mm 21 mm 7 mm .006 Kg
3621 06 10 6 mm 1/8" 10 mm 23.5 mm 6.5 mm .008 Kg
3621 06 13 6 mm 1/4" 14 mm 23.5 mm 6.5 mm .016 Kg
3621 08 10 8 mm 1/8" 10 mm 24 mm 6.5 mm .009 Kg
3621 08 13 8 mm 1/4" 14 mm 21 mm 24 mm .017 Kg
3621 10 13 10 mm 1/4" 14 mm 22 mm 6.5 mm .018 Kg
3621 10 17 10 mm 3/8" 17 mm 30 mm 7.5 mm .022 Kg
3621 12 17 12 mm 3/8" 17 mm 31 mm 7.5 mm .041 Kg
3621 12 21 12 mm 1/2" 22 mm 31 mm 7.5 mm .041 Kg
3621 14 21 14 mm 1/2" 22 mm 33 mm 8 mm .042 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
