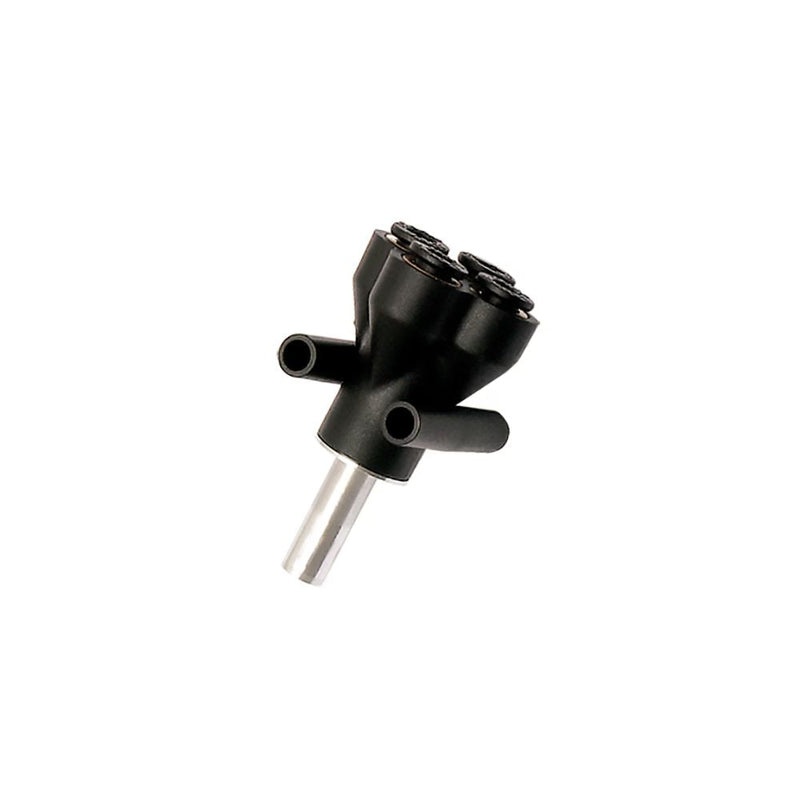

362PLPDSP-4M-6M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 4mm Tube Size x 6mm Tube Stem | 25.5 Height (H) | Y | Glass-Reinforced Nylon w/ Aluminum Tail Piece | Pack of 10

Save $22.94

$175.87

$175.87 - $175.87

$175.87

$152.93

$152.93 - $152.93

$152.93

by Parker Hannifin
Push-to-Connect Fittings:362PLPDSP Plug-In Multiple Y

Package Quantity: 10 Units

Specifications for Variant SKU: 362PLPDSP-4M-6M Parker \| 10 \|
Series:	362PLPDSP Series
Shape (Orientation):	Y
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	L	L1	M	N
362PLPDSP-4M-6M	4 mm	6 mm	25.5 mm	45.0 mm	31.0 mm	21.0 mm	10.0 mm
362PLPDSP-4M-8M	4 mm	8 mm	25.5 mm	49.5 mm	31.0 mm	21.0 mm	10.0 mm
362PLPDSP-6M-8M	6 mm	8 mm	31.5 mm	59.5 mm	41.0 mm	26.5 mm	12.0 mm

*Aluminum tail piece
