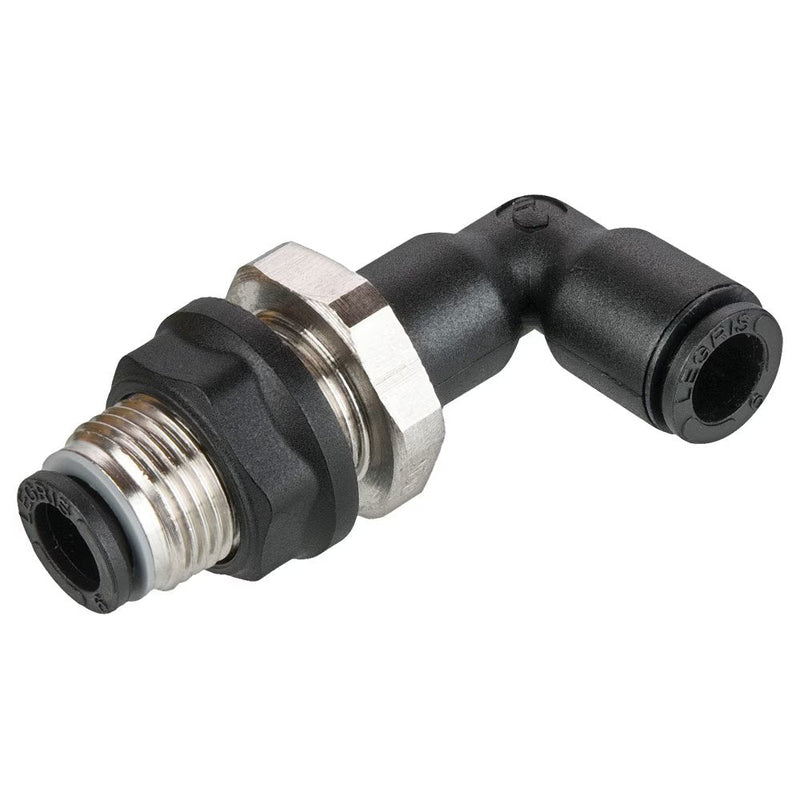

365PLPBH-4M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Union Fittings | 4mm Equal Bulkhead | 13mm Hex (C1) | 13mm Hex (C2) | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $20.95

$159.08

$159.08 - $159.08

$159.08

$138.13

$138.13 - $138.13

$138.13

by Parker Hannifin
Push-to-Connect Fittings:365PLPBH Equal Bulkhead Elbow

Package Quantity: 10 Units

Specifications for Variant SKU: 365PLPBH-4M Parker \| 10 \|
Series:	365PLPBH Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Hex (C1)	Hex (C2)	K (Max)	H	L	Bulkhead Thread	Bulkhead Hole Diameter
365PLPBH-4M	4 mm	13 mm	13 mm	6.5 mm	21.0 mm	17.0 mm	M12 x 1	12 mm
365PLPBH-6M	6 mm	15 mm	15 mm	7.0 mm	24.5 mm	19.5 mm	M14 x 1	14 mm
365PLPBH-8M	8 mm	18 mm	18 mm	8.0 mm	31.0 mm	24.0 mm	M16 x 1	16 mm
365PLPBH-10M	10 mm	22 mm	22 mm	8.5 mm	36.0 mm	28.0 mm	M22 x 1.5	22 mm
365PLPBH-12M	12 mm	26 mm	26 mm	8.5 mm	42.0 mm	33.0 mm	M24 x 1.5	24 mm
