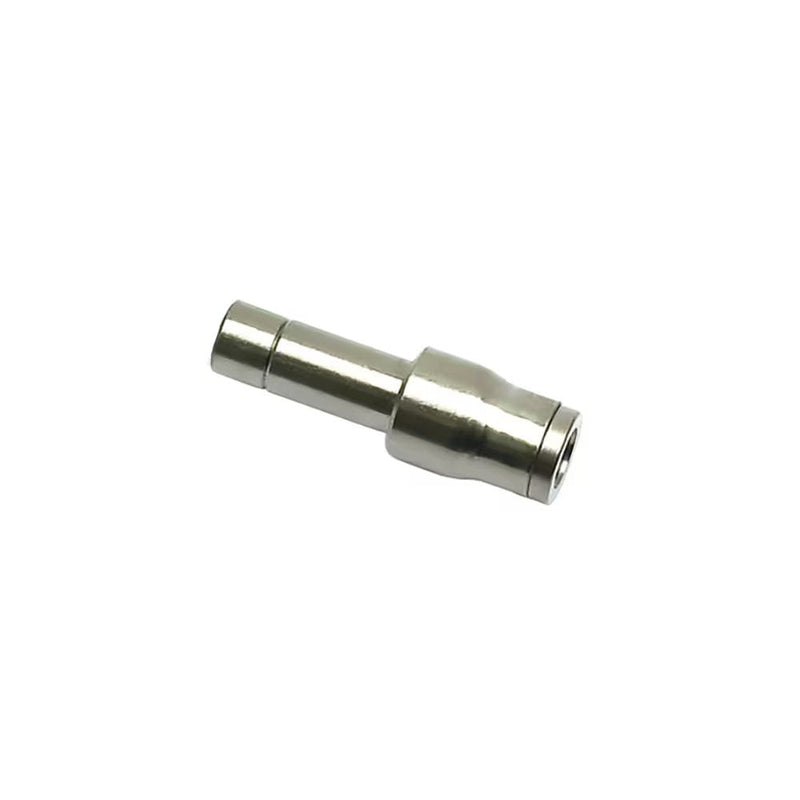

3666 12 14 by Parker | Legris Plug-In Reducer | 12 mm Tube Size x 14 mm Tube Size | 53 mm Length | Straight | Nickel-Plated Brass

3666 12 14 by Parker | Legris Plug-In Reducer | 12 mm Tube Size x 14 mm Tube Size | 53 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $101.15 Save $101.15
$252.88
$252.88 - $252.88
$252.88
$151.73
$151.73 - $151.73
$151.73

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Accessories :3666 Plug-In Reducer

Package Quantity: 5 Units

Specifications for Variant SKU: 3666 12 14 Parker | 5 |
Series: 3666 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD1 ØD2 G L L1 L2 Kg
3666 04 06 4 mm 6 mm 10 mm 35 mm 19.5 mm 18 mm .008 Kg
3666 04 08 4 mm 8 mm 10 mm 35.5 mm 20 mm 18 mm .009 Kg
3666 06 08 6 mm 8 mm 12 mm 38 mm 20 mm 20.5 mm .012 Kg
3666 06 10 6 mm 10 mm 12 mm 43.5 mm 25 mm 21 mm .015 Kg
3666 08 10 8 mm 10 mm 15 mm 44 mm 25 mm 21.5 mm .016 Kg
3666 08 12 8 mm 12 mm 15 mm 44 mm 26 mm 20.5 mm .018 Kg
3666 10 12 10 mm 12 mm 17.5 mm 50 mm 26 mm 27 mm .026 Kg
3666 12 14 12 mm 14 mm 19.5 mm 53 mm 28 mm 28.5 mm .032 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
